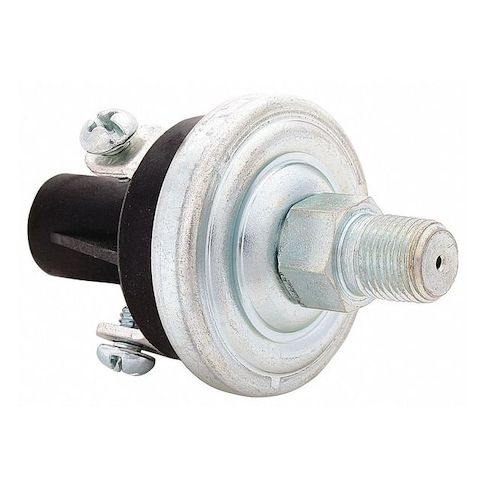

Pressure Switch - 5000 Series, SPST-NO, 8-13 psi, 1/8"-27 MNPT, IP54 MPN:76576-B00000100-01

Honeywell's 5000 Series Pressure Switch is rated for use within the specified pressure and electrical ratings, featuring a compact and constructed with materials suitable for typical industrial environments. This pressure switch includes adjustable set points within the specified range. It comes factory set with an on setting of 10 psi and is designed to maintain set points as specified under normal operating conditions.

Key features:

• - Contact Form: SPST-NO (Single Pole Single Throw - Normally Open)
• - Actuation Type: Diaphragm
• - Action: Standard
• - Pressure Range: 8 to 13 psi (adjustable deadband)
• - Factory On Setting: 10 psi
• - Maximum Pressure: 150 psi
• Minimum Pressure: 0.5 psi
• Proof Pressure: 500 psi
• - AC Contact Rating: 0.5A @ 240V, 1A @120V
• - DC Contact Rating: 15A @6V, 8A @12V, 4A @24V
• - IP54 rated enclosure
• - Connection/Port Type: 1/8"-27 MNPT
