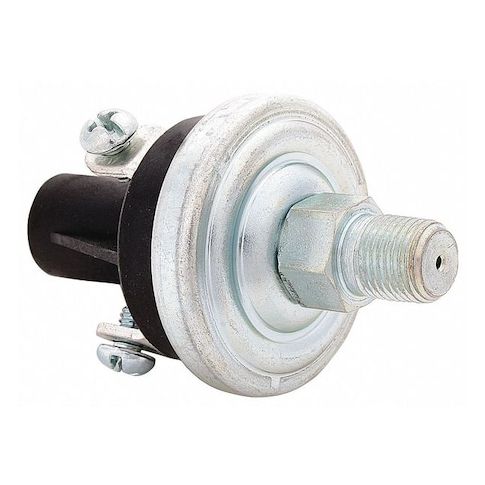

Pressure Switch - 5000 Series, SPDT, 14-24 psi, 1/8" MNPT, IP54 MPN:76072-B00000150-01
Free Shipping
In Stock
The Honeywell 5000 Series Pressure Switch is a reliable and versatile solution for a wide range of applications, including industrial processes, HVAC systems, and fluid handling equipment. Its factory-set and field-adjustable pressure range ensures precise control, while its compact design and durable construction withstand harsh environments. With a variety of termination options and a high IP54 rating, this switch is ideal for use in demanding settings. Its adjustable differential and high contact ratings make it suitable for applications requiring precise pressure control, such as pump control, level sensing, and flow monitoring.
Top product features:
- Factory-set, field-adjustable pressure range
- Kapton diaphragm compatible with multiple fluid types
- Compact design with factory-set and field-adjustable set points within stated tolerances
Top product applications:
- Pressure switches are commonly used in applications requiring precise pressure control, such as in hydraulic systems, pneumatic systems, and industrial processes.
- Pressure switches are used in oil and gas applications to monitor and control pressure levels in wells, pipelines, and equipment.
- Pressure switches are used in HVAC systems to control the pressure of air and water in heating, ventilation, and air conditioning systems.
Honeywell's 5000 Series Pressure Switch is rated for use within the specified pressure and electrical ranges and features a factory-set, field-adjustable pressure range. It utilizes a Kapton diaphragm compatible with multiple fluid types as specified by manufacturer guidelines and offers multiple termination options, including a Metri-Pack connector designed to interface with Metri-Pack connectors per manufacturer specifications. The switch has a compact design and is constructed to maintain factory-set and field-adjustable set points within stated tolerances.
Key Features:
- - Contact Form: SPDT-NO/NC
- - Actuation Type: Diaphragm
- - Pressure Range: 14 to 24 psi (factory on/off settings at 15/24 psi)
- - Deadband Adjustability: Adjustable differential from 10 to 24 psi
- - AC Contact Rating: 0.5A @ 240V, 1A @ 120V
- DC Contact Rating: 15A @ 6V, 8A @12V, 4A @24V
- - Maximum Pressure:150 psi
- Minimum Pressure:0.5 psi
- Proof Pressure: up to500 psi
- - IP54 rated enclosure
- - Port Type/Connection:1/8-27 in MNPT
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 2.50
- Package Weight: 0.15
