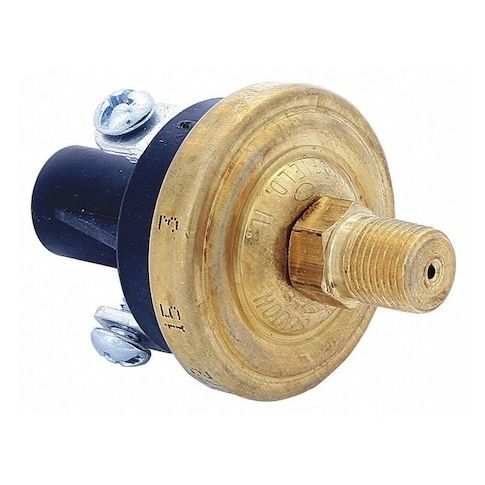

Pressure Switch - 5000 Series, SPST-NC, 1/8" MNPT, 0.5-150 psi, IP54 MPN:76061-B00000020-01

Honeywell's 5000 Series Pressure Switch is rated for use within the specified operating parameters and features a compact housing constructed from materials as specified. This pressure switch includes user-adjustable settings within the specified range. It includes an SPST-NC contact form and maintains set points as configured by the user within the stated specifications.

Key features:

• - Actuation Type: Diaphragm
• - Contact Form: SPST-NC (Single Pole Single Throw - Normally Closed)
• - AC Contact Rating: 0.5A @ 240V, 1A @ 120V
• - DC Contact Rating: 15A @ 6V, 8A @ 12V, 4A @ 24V
• - Deadband Adjustability: Adjustable between differential pressures of 1.1 to 3 psi
• - Factory On/Off Setting: On at 1.5 psi / Off at 3 psi
• - Pressure Range: Minimum operating pressure of 0.5 psi
• maximum of up to 150 psi
• proof pressure up to 500 psi
• - Port Type/Connection: Male NPT thread, size 1/8"-27 MNPT
• - IP54 rated housing for limited dust ingress and splash resistance
