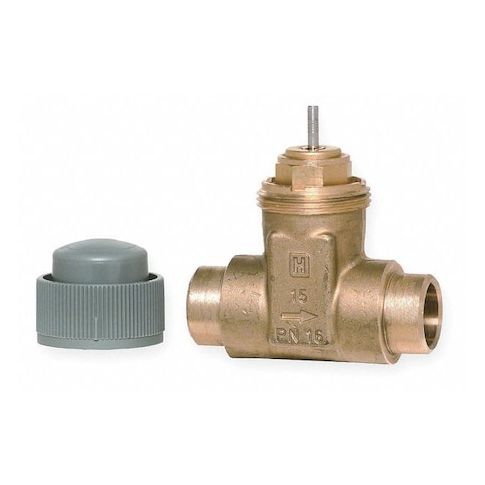

Globe Valve - 2-Way, 3/4 In Sweat, Brass, 4.9 Cv, V58 Series MPN:V5852A2072
The Honeywell V58 Series 2-Way Sweat Valve is a reliable and efficient solution for closed-loop HVAC systems. Rated for use with hot and chilled water or glycol solutions, this valve features a straight-thru configuration with a brass body and cartridge, stainless steel stem, and soft seat for low leakage operation. With a Cv of 4.9 and ANSI Leakage Class IV, it provides precise control and minimizes water waste. Suitable for applications such as commercial and industrial HVAC systems, this valve is compatible with Series 1000 actuators and offers a 100:1 rangeability, making it an ideal choice for a wide range of temperature control needs.
Top product features:
- Straight-thru configuration with a brass body and cartridge, stainless steel stem, and soft seat
- ANSI Leakage Class IV with leakage rate of ≤0.0001 for low leakage operation
- Equal Percentage flow characteristic with 100:1 rangeability
Top product applications:
- Hot and chilled water systems
- Closed-loop HVAC systems
- Glycol solution systems
The Honeywell Two-Way Sweat Valve, 3/4 In, 4.9 Cv is a hydronic globe valve rated for use with hot and chilled water or glycol solutions (up to 50%) in closed-loop HVAC systems. This valve features a straight-thru configuration with a brass body and cartridge, stainless steel stem, and soft seat
- ANSI Leakage Class IV with leakage rate of ≤0.0001 for low leakage operation. It is compatible with Series 1000 actuators including M6410, M7410, M6435, M7435 & Mp958 pneumatic actuator models (actuator not included).
Key features:
- - Body Material: Brass
- Cartridge Material: Brass
- Stem Material: Stainless Steel
- - Connection Type/Size: Sweat connection, 3/4 inch female ports
- - Coefficient of Volume (Cv): 4.9
- Flow Characteristic: Equal Percentage
- Rangeability: 100:1
- - Close-Off Pressure: 58 psi
- Maximum working pressure: 240 psi
- - Operating temperature range: 36°F to 230°F
- maximum allowable water temperature up to 248°F
- - ANSI Leakage Class IV with leakage rate of ≤0.0001
- - Includes installation manual
- threaded plastic cover allows manual operation
- - Dimensions (HxWxL): Height – 2 15/32 in., Width – 1 in., Length – 3 7/32 in.
- - Compatible Media: Water or glycol solution up to maximum concentration of 50%
- - Manufacturer Series V58
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.00
- Package Height: 1.70
- Package Weight: 0.74
