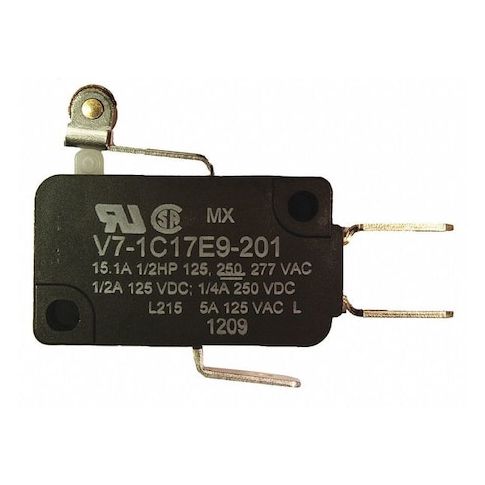

Snap Action Switch - V7 Series, SPDT, Roller Lever, 15A, Quick Connect MPN:V7-1C17E9-201
The Honeywell MICRO SWITCH V7 Miniature Snap Action Switch is a compact and versatile solution for a wide range of applications. Suitable for use in on/off limit applications, presence/absence detection, or assembly integration, this switch features a short roller lever actuator and quick connect terminals for efficient installation. With a compact thermoplastic enclosure and a variety of contact ratings, it can be used in a variety of settings, including industrial automation, medical devices, and consumer electronics. The switch's durable design and reliable operation make it an ideal choice for applications where dependability is critical.
Top product features:
- Short roller lever actuator for easy and precise actuation
- SPDT (Single Pole Double Throw) contact form for versatile on/off and switching applications
- Quick connect terminals for efficient and streamlined installation
Top product applications:
- on/off limit applications
- presence/absence detection
- assembly integration
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is housed in a compact thermoplastic enclosure. This switch features a short roller lever actuator and is suitable for use in on/off limit applications, presence/absence detection, or assembly integration. The device operates with an SPDT (Single Pole Double Throw) contact form and is constructed to accommodate quick connect terminals for efficient installation.
Key Features:
- - Contact Ratings: 15A at 125–277V AC
- 0.25A at 250V DC
- 0.5A at 125V DC
- - Actuator Style: Short roller lever, length of 0.82"
- - Body Dimensions: Width 1.14", Height 0.63", Depth 0.4"
- - Housing Material: PCT polyester thermoplastic
- - Mounting Hole Distance: Center-to-center spacing of 0.87"
- hole diameter of 1/8"
- - Electrical Connection: Quick connect spade tabs (0.250" wide x 0.032" thick)
- - Mechanical Travel: Maximum pretravel of 0.05", overtravel of up to 0.031", differential travel maximum of approximately 0.012"
- - Operating Force: Up to approximately 6 ozf (1.72N)
- - Temperature Range: -40°F (-40°C) to +185°F (+85°C), with options available up to +365°F (+185°C)
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.90
- Package Width: 0.60
- Package Height: 0.20
- Package Weight: 0.01
