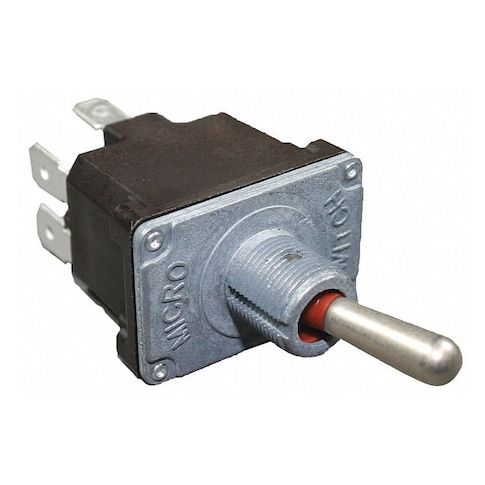

Toggle Switch - DPDT, Maintained On-On, 10A/250V, NEMA 4/IP67 Rated MPN:2NT91-8
The Honeywell NT Series Toggle Switch is a reliable and durable solution for applications requiring a maintained On-On circuit operation in harsh environments. Suitable for use in a variety of settings, including industrial, commercial, and outdoor applications, this DPDT switch offers a robust metal construction and quick-connect terminals for easy installation. With its NEMA 4/IP67 rating, it provides protection against dust and water ingress, ensuring reliable operation in extreme temperatures (-40°F to +160°F) and environments. Ideal for use in control panels, machinery, and equipment, this switch meets CE, CSA, and UL standards for added assurance.
Top product features:
- Maintained On-On circuit operation
- DPDT (Double Pole Double Throw) contact form
- Quick-connect terminals for easy connection and disconnection
Top product applications:
- Industrial control panels
- Automotive applications
- Offshore oil and gas platforms
The Honeywell NT Series Toggle Switch is a DPDT (Double Pole Double Throw) switch suitable for applications within the specified ratings and environmental parameters. It features a maintained On-On circuit operation and is constructed with a metal standard lever actuator, step base, and quick-connect terminals. The switch includes sealing features intended to limit ingress of dust and water
- rated per NEMA Types 3, 3R, 4 &13
- IP67/IP68 standards.
Key Features:
- - Contact Ratings: 10A @ 125V AC / 250V AC
- 18A @ 28V DC
- - Contact Form: DPDT (Double Pole Double Throw)
- - Circuit Operation: Maintained On-On
- - Actuator: Metal bat-handle style
- silver finish
- length 0.67 in
- - Mounting: Bushing OD x L - 15/32 x 0.47 in.
- mounting hole diameter - 0.47 in.
- - Terminal Type: Quick connect tab (0.25 in), six connections
- - Enclosure Ratings: NEMA Types 3, 3R, 4, &13
- IP67/IP68 rated
- - Resistance Properties: Rated per NEMA Types 3, 3R, 4 &13
- IP67/IP68 standards for protection against dust and water ingress
- designed to operate within specified temperature range (-40°F to +160°F / -40°C to +71°C)
- - Operating Temperature Range: -40°F to +160°F (-40°C to +71°C)
- - Overall Dimensions (HxWxD): 2.49 x 0.89 x1.13 in.
- - Standards Compliance: CE marked
- CSA & UL listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.10
