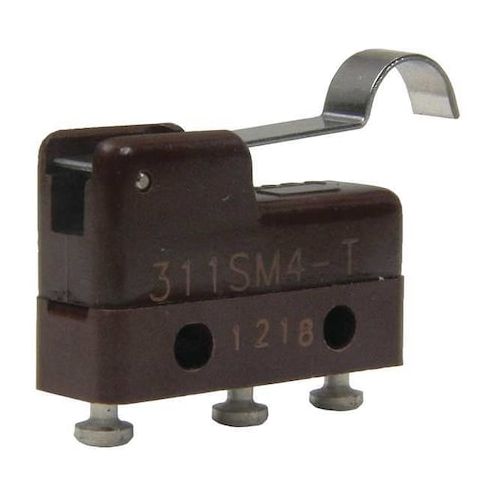

Subminiature Snap Action Switch - SPDT, Lever Roller, 5A, Solder Terminals MPN:311SM4-T
The Honeywell Miniature Snap Action Switch is a compact and reliable solution for a wide range of applications. Suitable for use in control panels, instruments, and other devices, this switch features a simulated roller lever actuator and an SPDT contact form, allowing for both normally open and normally closed circuit configurations. With a high AC and DC contact rating, it can handle demanding electrical loads while withstanding a broad operating temperature range. Ideal for use in industrial, aerospace, and medical equipment, this switch offers a durable and reliable solution for applications requiring precise control and high performance.
Top product features:
- The switch features an SPDT (Single Pole Double Throw) contact form, allowing for both normally open and normally closed circuit configurations.
- The switch has a simulated roller lever actuator, providing a specific type of user interface.
- The switch has a maximum operating force of 1.4 ozf and a release force of 0.25 ozf, allowing for controlled and precise actuation.
Top product applications:
- Industrial control panels
- Automotive dashboards
- Medical equipment
The Honeywell Miniature Snap Action Switch from the SM Series is a compact switch rated for specified operational parameters per manufacturer specifications. It features a simulated roller lever actuator and an SPDT (Single Pole Double Throw) contact form, allowing for both normally open and normally closed circuit configurations. The switch body is constructed from general purpose phenolic material suitable for use within the specified temperature range.
Key Features:
- - AC Contact Rating: 5A @ 240V
- - DC Contact Rating: 5A @ 28V
- - Actuator Type: Lever with simulated roller, length 0.25"
- - Body Dimensions: 0.78" width x 0.5" height x 0.25" depth
- - Mounting Hole Distance: 0.38" centers
- mounting hole diameter of 7/8"
- - Electrical Connection: Solder turret terminals
- - Operating Force: Maximum of 1.4 ozf
- release force of 0.25 ozf
- - Travel Parameters: Max pretravel of 0.085", overtravel of 0.018", differential travel of up to 0.019"
- - Operating Temperature Range: -67°F to +257°F
- - Standards Compliance: CE, CSA, ENEC, FAA-PMA, MIL‑PRF‑8805, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.20
- Package Weight: 0.01
