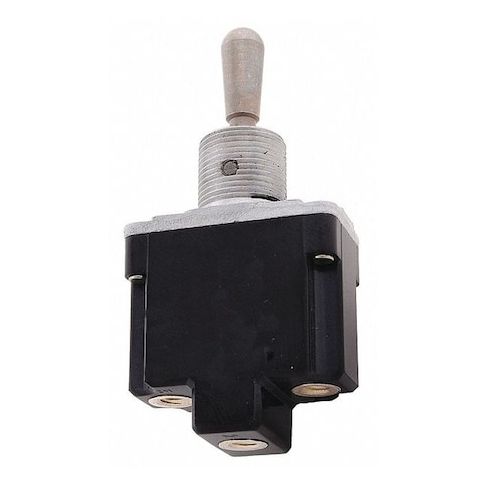

Toggle Switch - SPST, Momentary ON/OFF, 10A 125V AC, IP67/IP68 Rated MPN:1NT1-6
The Honeywell NT Series Toggle Switch is a reliable and versatile solution for a wide range of applications, from industrial control systems to commercial and residential settings. With its momentary ON/maintained OFF functionality and IP67/IP68 rating, this switch can withstand harsh environments and heavy use. Its compact design and easy-to-use metal lever actuator make it a great choice for applications where space is limited. Suitable for use in temperatures from -85°F to 160°F, this switch is perfect for outdoor or indoor use in areas with high humidity or exposure to water. Ideal for use in control panels, equipment, and machinery.
Top product features:
- Contact Ratings: 10A @ 125V AC / 250V AC
- Momentary ON/maintained OFF functionality
- Standard metal lever actuator with a silver finish
Top product applications:
- Industrial Control Panels
- Automotive Applications
- Medical Equipment
Honeywell NT Series Toggle Switch is a single-pole, single-throw (SPST) switch suitable for applications within the specified environmental ratings. It features a standard metal lever actuator with a silver finish and includes a bushing, case, cover, and toggle lever. The switch offers momentary ON/maintained OFF functionality and is rated IP67/IP68 and NEMA types 13, 3, 3R, and 4 per manufacturer specifications
- see datasheet for details.
Key Features:
- - Contact Ratings: 10A @ 125V AC / 250V AC
- 15A @ 28V DC
- - Actuator: Standard metal lever
- silver color
- length 0.67 in
- - Mounting: Step base type
- mounting hole diameter 0.47 in
- - Protection Ratings: IP67/IP68
- NEMA types 13, 3, 3R, and 4
- - Operating Temperature Range: -85°F to +160°F (-40°C to +71°C)
- - Terminals: Screw connection type with two connections
- - Dimensions: Overall height 2.3 in
- width 0.62 in
- depth 1.12 in
- - Certifications: CE marked, CSA certified, UL listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.70
- Package Height: 0.70
- Package Weight: 0.05
