Snap Action Switch - V7 Series, Pin Plunger, 21A, 1NO, Quick Connect MPN:V7-1V29E9
Snap Action Switch - V7 Series, Pin Plunger, 21A, 1NO, Quick Connect

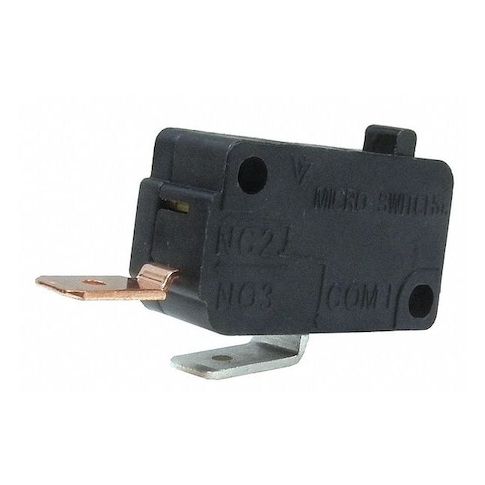

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch features a compact, thermoplastic housing. This switch features a pin plunger actuator and is intended for use in applications involving on/off limit detection or presence/absence sensing. The device offers quick connect terminals and supports single normally open (1NO) contact configuration.
Key Features:
- - AC Contact Rating: 21A at up to 277V
- rated for 1 HP at 125V, 250V, and 277V
- - Actuator Type: Pin plunger with an actuator length of 1.14"
- - Body Dimensions: Width 1.14", Height 0.63", Depth 0.4"
- - Housing Material: PCT polyester thermoplastic
- - Mounting Hole Distance: Center-to-center spacing of 0.87" with mounting hole diameter of 1/8"
- - Operating Force: Maximum of 8 ozf (2.22N)
- - Electrical Connection: Quick connect terminals (1/4")
- - Temperature Range: -40°F to +185°F
- options available up to +347°F
- - Travel Characteristics: Pretravel of 0.047", overtravel of 0.05", differential travel maximum of 0.01"
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.90
- Package Width: 0.50
- Package Height: 0.40
- Package Weight: 0.01
Product info last updated on February 6, 2026 9:58pm UTC
