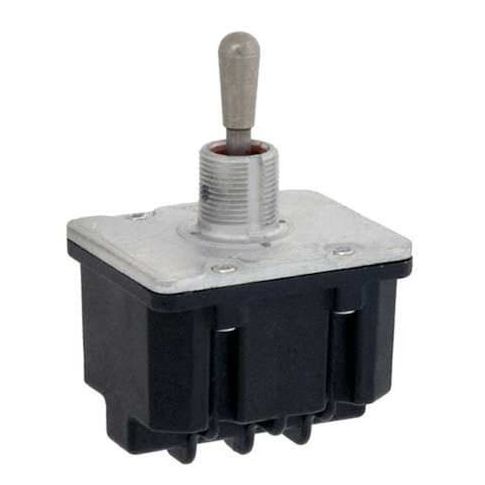

Toggle Switch - 4PDT, ON-ON, Maintained, MIL-DTL-3950, IP67 Rated MPN:4TL1-3D

Honeywell MICRO SWITCH TL Series Toggle Switch ON-ON 4PDT is a toggle switch suitable for applications as specified by the manufacturer. This model features a maintained ON/ON function, 4-pole double throw (4PDT) contact form, and screw terminal connections. The construction includes a bonded seal between the toggle lever and bushing as well as between the cover and case. It meets military qualification standards MIL-DTL-3950 and carries CE, CSA, and UL listings.

Key Features:

• - Contact Ratings: 15A @ 125V AC / 250V AC
• 20A @ 28V DC
• - Actuator: Silver metal pull-to-unlock style
• length of 0.67 in
• - Positions & Poles: Two positions (ON/ON), four poles (4PDT), twelve connections
• - Mounting: Step base with mounting hole diameter of 0.47 in
• - Resistance Properties: constructed to meet shock and vibration resistance standards as specified (refer to product datasheet)
• IP67 rated
• - Operating Temperature Range: -85°F to +160°F
• - Special Features: Locked out of center position
• silver cadmium oxide contacts
• non-illuminated operator style
• - Dimensions: Overall height—2.49 in, width—1.64 in, depth—1.13 in
