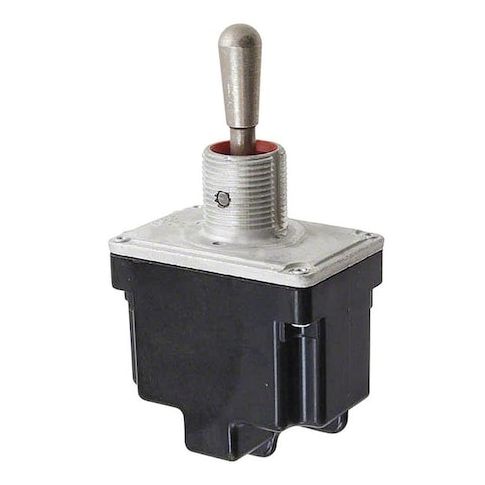

Toggle Switch - DPDT, On/On/On, 15A 125V AC, IP67/IP68, Metal Lever MPN:2NT1-10

Honeywell MICRO SWITCH NT Series Toggle Switches are suitable for applications within the specified environmental ratings. This DPDT (Double Pole Double Throw) toggle switch features a maintained On/On/On function with a standard metal lever actuator and step base design. The construction includes seals between the toggle lever and bushing as well as between the cover and case.

Key Features:

• - Contact Ratings: 15A @ 125V AC / 250V AC
• 20A @ 28V DC
• - Actuator: Silver metal standard lever, length 0.67 in
• - Positions: Three-position (On/On/On), maintained action
• - Terminals: Screw type connections
• six terminals total
• - Mounting Hole Diameter: 0.47 in
• overall dimensions—height: 2.49 in, width: 0.89 in, depth: 1.13 in
• - Protection Ratings: IP67/IP68 ingress protection and NEMA types 3, 3R, 4, and 13 enclosure standards
• - Operating Temperature Range: -85°F to +160°F (-40°C to +71°C)
• - Resistance Properties: Meets relevant standards for particulate ingress protection (see IP/NEMA ratings)
• constructed in accordance with applicable shock test requirements (refer to product datasheet)
• meets liquid ingress protection as defined by IP67/IP68 ratings
• operational within the specified operating temperature range (-85°F to +160°F / -40°C to +71°C)
• tested according to applicable vibration resistance standards (refer to manufacturer specifications)
• - Certifications & Standards Met: CE marked
• CSA and UL listed
