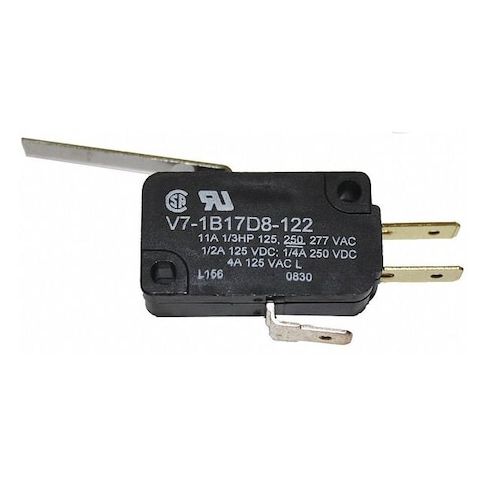

Snap Action Switch - SPDT, Short Lever, 11A 250V AC, Quick Connect Terminals MPN:V7-1B17D8-122
The Honeywell MICRO SWITCH V7 Miniature Snap Action Switch is a versatile and reliable solution for a wide range of applications, including on/off limit or presence/absence sensing. Its short straight lever actuator and SPDT operation make it easy to integrate into various systems, while its quick connect terminals simplify installation. Suitable for use in harsh environments, this switch features a polyester body and operates within a temperature range of -40°F to +185°F. Ideal for use in industrial automation, process control, and medical equipment, this switch offers reliable performance and easy integration, making it a valuable addition to any system.
Top product features:
- Short straight lever actuator provides a convenient and accessible way to activate the switch
- Supports single-pole double-throw (SPDT) operation for versatile on/off limit or presence/absence sensing applications
- Quick connect terminals enable straightforward and efficient installation
Top product applications:
- On/off limit sensing
- Presence/absence sensing
- Control circuit applications
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with a thermoplastic housing. This switch features a short straight lever actuator and supports single-pole double-throw (SPDT) operation, making it suitable for use in various on/off limit or presence/absence sensing applications. The device features quick connect terminals for straightforward installation and is constructed with a polyester body.
Key Features:
- - Actuator Type: Short straight lever, 1.63" length
- - Contact Form: SPDT (1NO/1NC)
- - Electrical Ratings: AC—11A @ 250V
- DC—0.5A @ 125V, 0.25A @ 250V
- - Operating Force: Maximum 1.5 ozf (0.42N)
- - Travel Parameters: Pretravel—0.236", Overtravel—0.118", Differential travel—0.053"
- - Mounting Dimensions: 0.87" centers, mounting hole diameter of 1/8"
- - Body Size: Width—1.14", Height—0.63", Depth—0.4"
- - Housing Material: Polyester
- - Temperature Range: -40°F to +185°F standard
- options up to +347°F available
- - Terminal Type: Quick connect (3/16")
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.20
- Package Height: 0.20
- Package Weight: 0.01
