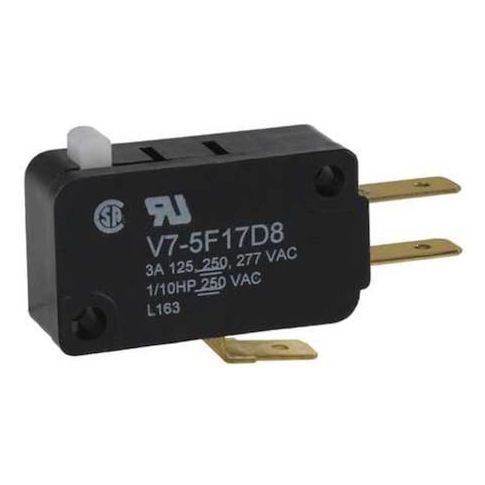

Snap Action Switch - V7 Series, SPDT, Pin Plunger, 3A, Miniature MPN:V7-5F17D8
The Honeywell MICRO SWITCH V7 Miniature Snap Action Switch is a compact and reliable solution for on/off limit or presence/absence sensing applications. With a pin plunger actuator and SPDT operation, this switch provides sensitive switching and actuation within a specified operating force range. Suitable for use in various industries, including industrial automation, medical devices, and consumer electronics, this switch offers a range of benefits, including high sensitivity, compact design, and easy integration into assemblies. Its rugged construction and wide operating temperature range make it an ideal choice for applications where reliability and durability are critical.
Top product features:
- The switch features a pin plunger actuator.
- The device supports single-pole double-throw (SPDT) operation.
- The switch provides actuation within a specified operating force range.
Top product applications:
- On/off limit sensing
- Presence/absence sensing
- Automated assembly line control
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with a compact thermoplastic housing. This switch features a pin plunger actuator and supports single-pole double-throw (SPDT) operation, making it suitable for use in various on/off limit or presence/absence sensing applications. The device provides actuation within the specified operating force range and can be integrated into assemblies requiring sensitive switching.
Key Features:
- - AC Contact Rating: 3A at 125V, 250V, or 277V AC
- - Actuator Type: Pin Plunger
- - Contact Form: SPDT (1NO/1NC)
- - Body Material: PCT Polyester Thermoplastic
- - Electrical Connection: 3/16 in Quick Connect terminals
- - Operating Force: Maximum of 0.53 ozf
- - Differential Travel Range: 0.002 to 0.010 in
- - Pretravel: Max. 0.047 in
- Overtravel: 0.05 in
- - Mounting Dimensions: Centers at 0.87 in
- Hole Diameter of 1/8 in
- - Overall Size (W x H x D): 1.14 x 0.63 x 0.4 in
- - Operating Temperature Range: -40°F to +365°F
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.90
- Package Width: 0.50
- Package Height: 0.30
- Package Weight: 0.01
