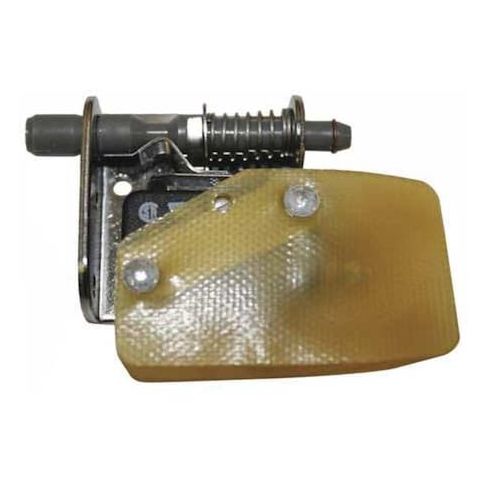

Door Switch - SPDT, 15A, Screw Terminals, Pull-to-Override, AC Series MPN:22AC2-UL

The Honeywell Door Switch, SPDT, Screw Terminals, 15A is a compact switch assembly intended for use in applications requiring position detection of doors or panels. It features a maintained/momentary switch action with three positions and is rated to interrupt electrical circuits within specified parameters when actuated. The unit includes a “pull-to-override” function that maintains circuit continuity during manual operation.

Key Features:

• - Contact Form: Single Pole Double Throw (SPDT)
• - Electrical Rating: 15 A @ 250 V AC
• DC rating of 0.25 A @ 250 V and 0.5 A @ 125 V
• - Horsepower Rating: Up to 1/2 hp at 125/250V AC
• - Actuator Material: Polyester rod plunger
• - Construction: Stainless steel bracket included
• - Terminal Connection Type: Screw terminals designed for wire attachment
• - Operating Temperature Range: -65°F to 180°F (-53°C to 82°C)
• - Nominal Dimensions (LxWxH): 1.50 x 0.50 x 1.50 in (38.1 x12.7 x38.1 mm)
• - Standards: CSA and UL listed
