Snap Action Switch - SPDT, Roller Lever, 15A, Phenolic Body, BZ Series MPN:BZ-2RW82212-A2
Snap Action Switch - SPDT, Roller Lever, 15A, Phenolic Body, BZ Series

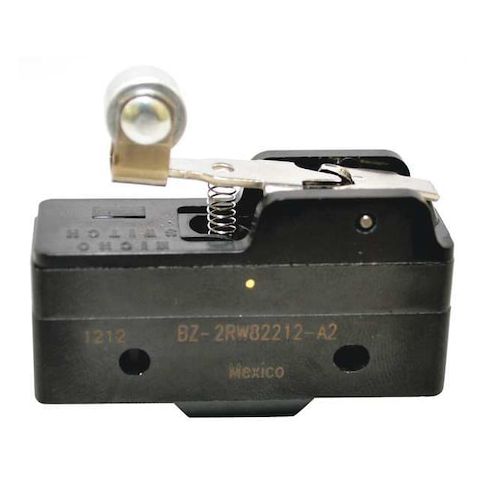

Rated for consistent on/off actuation within specified parameters, the Honeywell BZ Series Industrial Snap Action Switch is configured for on/off actuation as specified
- suitable for use in a range of compatible applications. This switch features a short roller lever actuator with spring return action, housed in a phenolic body measuring 1.94 inches wide by 1 inch high by 0.7 inches deep. It offers single-pole double-throw (SPDT) contact configuration and supports both AC and DC ratings up to 15A at 240V AC.
Key Features:
- - Actuator: Short roller lever, 1.05" length
- - Contact Form: SPDT (1NO/1NC)
- - Electrical Ratings: Up to 15A @ 240V AC
- up to 0.25A @ 250V DC
- - Body Material: Phenolic construction
- - Mounting Dimensions: Center mounting holes at 1" centers
- mounting hole diameter of 1/8"
- - Operating Force: Maximum of 6 ozf
- release force of 1.5 ozf
- - Travel Parameters: Pretravel of 0.078", overtravel of 0.094", differential travel from 0.003" to max of 0.02"
- - Temperature Range: -67°F to +185°F (-55°C to +85°C)
- - Terminals: Bottom-facing screw terminals with cup washer (6–32 x .218")
- - Standards Compliance: CE, CSA, ENEC, UKCA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.70
- Package Height: 0.60
- Package Weight: 0.01
Product info last updated on March 2, 2026 4:44pm UTC
Category: Industrial Electrical Controls and Automation
