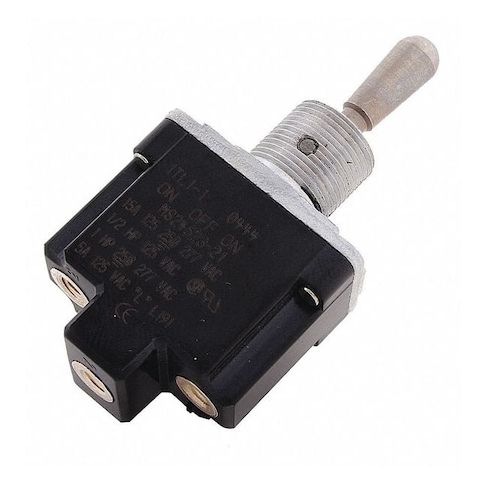

Toggle Switch - SPDT, (ON)-OFF-ON, 10A/125V AC, IP67, TL Series MPN:1TL1-5
The Honeywell TL Series Toggle Switch is a reliable and versatile solution for applications requiring high-quality switching performance. Suitable for use in environments with specified qualification or sealing requirements, this SPDT switch offers momentary ON/maintained OFF/maintained ON functionality, making it ideal for use in a variety of industries, including industrial control, medical equipment, and transportation. With its IP67 rating and resistance to shock and vibration, this switch ensures reliable operation in harsh environments. Its compact design and screw-type connections make it easy to integrate into existing systems, providing a seamless and efficient switching solution.
Top product features:
- Momentary ON/maintained OFF/maintained ON functionality
- Bonded seals between the toggle lever and bushing, and between the cover and case, for enhanced durability and reliability
- Resistance to shock and vibration according to applicable standards
Top product applications:
- Industrial Control Panels
- Automotive Applications
- Medical Equipment Control Panels
Honeywell’s TL Series Toggle Switch (ON)-OFF-ON SPDT is a single-pole, double-throw switch suitable for use in applications with specified qualification or sealing requirements. This toggle switch features a standard metal lever actuator with a silver finish and offers momentary ON/maintained OFF/maintained ON functionality. It is constructed with bonded seals between the toggle lever and bushing, as well as between the cover and case, constructed to meet performance specifications under the stated environmental conditions as per product ratings.
Key Features:
- - Contact Ratings: 10A @ 125V AC / 250V AC
- 15A @ 28V DC
- - Switch Function: Momentary On/Maintained Off/Maintained On (3 positions)
- - Contact Form: SPDT (Single Pole Double Throw)
- - Actuator: Standard metal lever
- silver color
- length 0.67 in
- - Mounting Hole Diameter: 0.47 in
- Stem Thread Size: 15/32-32 UNS-2A
- - Resistance Properties: Rated for operation under specified levels of shock and vibration according to applicable standards
- - IP Rating: IP67 rated (see specification for details on protection level)
- - Operating Temperature Range: -85°F to +160°F
- - Terminals: Screw type connections
- number of connections—3
- - Standards Met: CE, CSA, MIL-DTL-3950 qualified, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 2.40
- Package Height: 0.10
- Package Weight: 0.05
