Snap Action Switch - Miniature, SPDT, Roller Lever, 15A, Quick Connect MPN:V7-1C13D8-201
Snap Action Switch - Miniature, SPDT, Roller Lever, 15A, Quick Connect

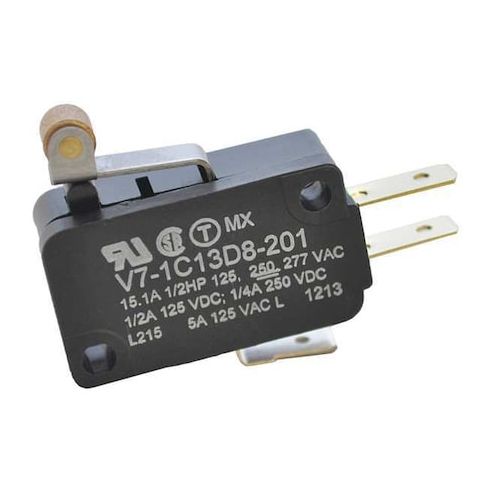

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is housed in a compact thermoplastic enclosure. This switch features a short roller lever actuator and is intended for use in applications involving on/off control or presence/absence detection. The device offers both normally open and normally closed contacts (SPDT) and supports quick connect electrical connections.
Key Features:
- - Actuator Type: Short roller lever, 0.82" length
- - Contact Form: SPDT (1NO/1NC)
- - AC Contact Rating: Up to 15A @ 125V
- also rated for 15.1A at up to 277V
- - DC Contact Rating: Up to 0.5A @ 125V, 0.25A @ 250V
- - Operating Force: Maximum of 6.1 ozf
- - Body Dimensions: Width – 1.14", Height – 0.63", Depth – 0.4"
- - Housing Material: PCT polyester thermoplastic
- - Mounting Hole Distance: Center-to-center spacing of 0.87"
- hole diameter of 1/8"
- - Electrical Connection: Quick connect terminals (3/16")
- - Temperature Range: -40°F to +185°F standard
- options available up to +347°F
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.20
- Package Height: 0.40
- Package Weight: 0.01
