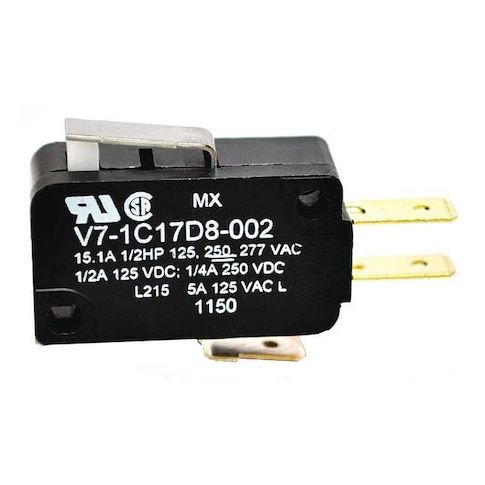

Snap Action Switch - SPDT, Short Lever, 15.1A, Quick Connect Terminals MPN:V7-1C17D8-002
Snap Action Switch - SPDT, Short Lever, 15.1A, Quick Connect Terminals
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch features a short lever actuator and is suitable for use in on/off limit or presence/absence sensing applications, as specified by the manufacturer. Housed in a PCT polyester thermoplastic body, this SPDT switch is rated for operation within the specified parameters with quick connect terminals designed with quick connect terminals to facilitate installation.
Key Features:
- - Contact Form: Single Pole Double Throw (SPDT), 1NO/1NC
- - Actuator Type: Short straight roller lever, 0.87" length
- - Electrical Ratings: AC—15.1A at 125–277V
- DC—0.5A at 125V, 0.25A at 250V
- - Operating Force: Maximum of 5.5 ozf (1.57N)
- - Travel Parameters: Pretravel max 0.06", overtravel 0.035", differential travel max 0.015"
- - Housing Material: Polyester thermoplastic
- - Mounting Dimensions: Centers at 0.41 x 0.87"
- mounting hole diameter of 1/8"
- - Temperature Range: -40°F to +185°F (-40°C to +85°C)
- - Terminal Type & Size: Quick connect spade tab, 3/16" wide x .020" thick
- - Certifications: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.05
Product info last updated on February 27, 2026 1:46am UTC
Category: Industrial Electrical Controls and Automation
