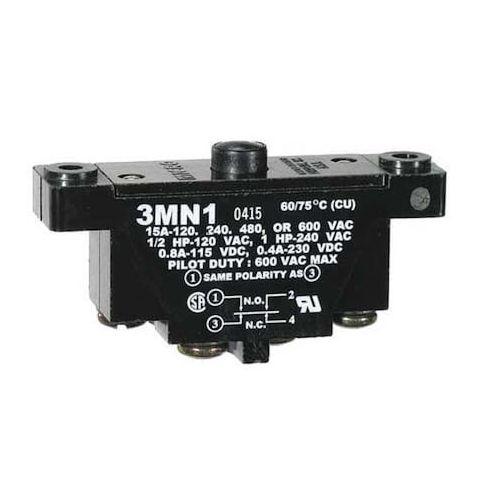

Snap Action Switch - DPDT, Pin Plunger, 15A, Phenolic Body, 3MN Series MPN:3MN1
The Honeywell 3MN Series Snap Action Switch is a reliable and versatile solution for a wide range of applications, including limit or control mechanisms on equipment specified by the manufacturer. This DPDT switch features a durable phenolic body and is designed for gang mounting configurations. With a 15A AC contact rating and 0.8A DC contact rating, it can handle heavy loads and demanding environments. Suitable for applications in industrial automation, robotics, and more, this switch offers a high level of reliability and durability, making it an ideal choice for applications requiring precise control and switching.
Top product features:
- AC Contact Rating: 15 A at 600 V
- DC Contact Rating: 0.8 A at 115 V
- Has a phenolic body suitable for gang mounting configurations.
Top product applications:
- Limit or control mechanisms on compatible equipment as specified by the manufacturer.
- Gang mounting configurations according to product specifications.
- Limit or control mechanisms on compatible equipment as specified by the manufacturer.
The Honeywell 3MN Series Snap Action Switch is a pin plunger actuator switch intended for applications including limit or control mechanisms on compatible equipment as specified by the manufacturer. This double pole double throw (DPDT) switch features a phenolic body and is suitable for gang mounting configurations according to product specifications.
Key features include:
- - AC Contact Rating: 15 A at 600 V
- - DC Contact Rating: 0.8 A at 115 V
- - Actuator Type: Pin Plunger, 2.00" length
- - Contact Form: DPDT (1NO/1NC)
- - Operating Force Range: 12 ozf minimum to 20 ozf maximum
- - Differential Travel: 0.015 in minimum to 0.025 in maximum
- - Pretravel: 0.06 in
- Overtravel: 0.08 in
- Release Force: 6 ozf
- - Body Dimensions: Depth—0.7 in, Height—1 in, Width—2 in
- - Mounting Dimension: Center holes spaced at 2.13"
- - Electrical Connection and Terminal Type: Screw terminals
- - Housing Material: General purpose phenolic
- - Operating Temperature Range: -67°F to +185°F
- - Standards Compliance: CSA and UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.30
- Package Height: 0.60
- Package Weight: 0.01
