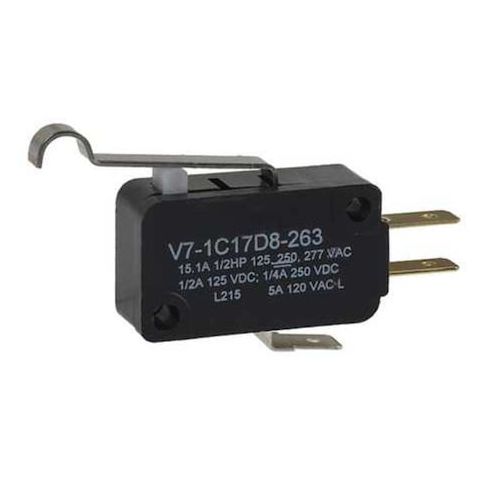

Snap Action Switch - V7 Series, Lever Actuator, SPDT, 15.1A, Miniature MPN:V7-1C17D8-263
The Honeywell MICRO SWITCH V7 Miniature Snap Action Switch is a versatile and reliable solution for on/off limit and presence/absence sensing applications. With its compact design and lever actuator, it's perfect for use in a wide range of industries, including automation, HVAC, and industrial control. The switch offers high current ratings, making it suitable for applications requiring up to 15.1A of power. Its compact size and durable construction make it an ideal choice for space-constrained environments, and its compliance with various international standards ensures seamless integration into existing systems.
Top product features:
- Contact Ratings: 15.1A at 125–277V AC, 0.25A at 250V DC, 0.5A at 125V DC
- Lever Actuator with Simulated Roller
- SPDT (Single Pole Double Throw) contact configuration
Top product applications:
- on/off limit sensing
- presence/absence sensing
- industrial control systems
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch features a lever actuator with a simulated roller, rated for use in on/off limit and presence/absence sensing applications within specified parameters. The switch is housed in a PCT polyester thermoplastic body and offers SPDT (Single Pole Double Throw) contact configuration. It operates with an actuation force of 3.2 ozf and supports both AC and DC voltage ratings.
Key Features:
- - Contact Ratings: 15.1A at 125–277V AC
- 0.25A at 250V DC
- 0.5A at 125V DC
- - Actuator Type: Lever, Simulated Roller
- length: 1.29"
- - Body Dimensions: Width – 1.14", Height – 0.63", Depth – 0.4"
- - Mounting Hole Distance: Center-to-center spacing of 0.87"
- hole diameter of 1/8"
- - Electrical Connection: Quick connect terminals (spade tab, .188" wide x .020" thick)
- - Differential Travel: Maximum of 0.025"
- Overtravel up to 0.061"
- Pre-travel maximum of 0.11"
- - Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.10
