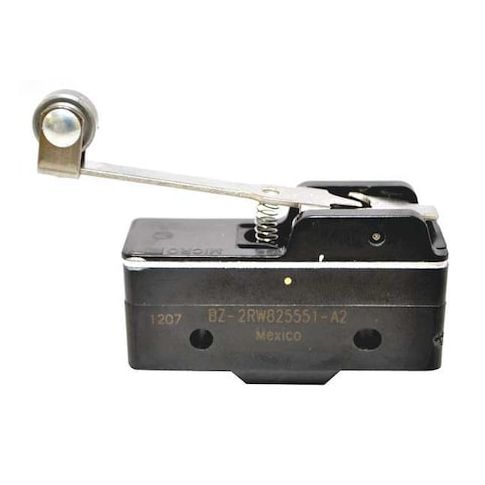

Snap Action Switch - SPDT, Long Roller Lever, 15A, BZ Series Basic Switch MPN:BZ-2RW825551-A2
Free Shipping
In Stock
The Honeywell BZ Series Snap Action Switch is a reliable and accurate solution for a wide range of applications, from industrial control panels to medical equipment. Its long roller lever actuator provides a smooth and consistent switching action, while its spring return action ensures reliable operation. With a high current rating and durable phenolic housing, this switch is designed to withstand the demands of heavy use. Suitable for AC or DC power, it's ideal for use in control circuits, alarm systems, and other applications where precise switching is critical. Its compact size and easy installation make it a convenient choice.
Top product features:
- Accurate and repeatable operation within specified parameters
- Long roller lever actuator with spring return action
- Differential travel range specification for consistent operation
Top product applications:
- Industrial Automation
- This product can be used in industrial automation systems to control the flow of electricity to motors, pumps, and other equipment.
- Robotics and Machine Design
Accurate and repeatable, the Honeywell Snap Action Switch from the BZ Series is rated for consistent operation within specified parameters. This switch features a long roller lever actuator with spring return action and features a differential travel range as specified. Constructed with a phenolic housing, it provides bottom-facing screw terminals for secure electrical connections.
Key Features:
- - Contact Form: SPDT (1NO/1NC)
- - AC Contact Rating: 15 A at 240 V
- - DC Contact Rating: 0.5A @ 125V DC
- 0.25A @ 250V DC
- - Actuator Type: Long Roller Lever, length of 1.9"
- - Operating Force: Maximum of 8 ozf
- Release Force: 0.75 ozf
- - Differential Travel Range: Minimum of 0.004 in, maximum of 0.015 in
- - Overtravel: Up to 0.156 in
- Pretravel up to 0.218 in
- - Body Dimensions: Width—2 in, Height—1 in, Depth—0.7 in
- - Mounting Hole Distance: Center-to-center spacing of 1 inch
- hole diameter is 1/8 inch
- - Electrical Connection: Bottom facing screw terminal (6–32 x .218" cup washer)
- - Operating Temperature Range: -67°F to +185°F (-55°C to +85°C)
- - Standards Met: CE, CSA, ENEC, UKCA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.00
- Package Height: 0.60
- Package Weight: 0.01
