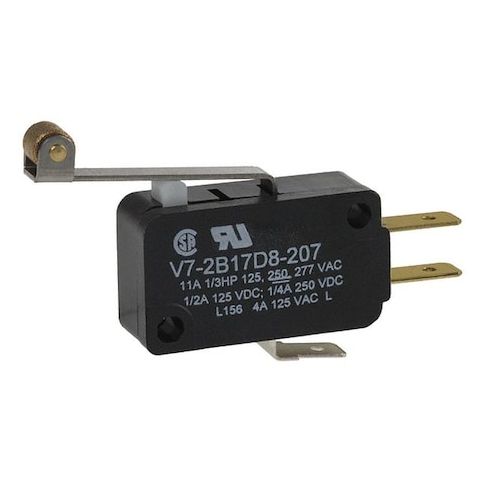

Snap Action Switch - V7 Series, SPDT, Long Roller Lever, 11A, Miniature MPN:V7-2B17D8-207
The Honeywell MICRO SWITCH V7 Miniature Snap Action Switch is a reliable and versatile solution for a wide range of applications. Suitable for integration into electrical circuits, this switch features a long roller lever actuator and SPDT contact configuration, making it ideal for use in industrial automation, control systems, and medical devices. With a low operating force of 1.6 oz and support for both AC and DC loads, this switch offers high reliability and durability. Its compact size and quick connect terminals make it easy to integrate into existing systems, making it a great choice for applications where space and efficiency are crucial.
Top product features:
- Long roller lever actuator
- SPDT (Single Pole Double Throw) contact configuration
- Supports both AC and DC loads
Top product applications:
- Automotive applications, such as dashboard controls and accessories
- Industrial control systems, including machinery and equipment automation
- Medical devices, including patient monitoring and surgical equipment
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with materials and components rated for use in accordance with manufacturer specifications. This switch features a long roller lever actuator and features SPDT (Single Pole Double Throw) contact configuration
- suitable for integration into compatible electrical circuits as specified by the user. The device operates with an operating force of 1.6 oz (0.44 N) and supports both AC and DC loads.
Key Features:
- - Actuator: Long roller lever, 1.35" length
- - Contact Form: SPDT (1NO/1NC)
- - Electrical Ratings: 11A @ 125–277V AC
- 0.25A @ 250V DC
- 0.5A @ 125V DC
- - Body Material: PCT polyester thermoplastic
- - Dimensions: Width – 1.14", Height – 0.63", Depth – 0.4"
- - Mounting Hole Distance: Center-to-center spacing of 0.87"
- hole diameter of 1/8"
- - Connection Type: Quick connect terminals, spade tab (0.188" wide x 0.020" thick)
- - Travel Characteristics: Pretravel max – 0.11"
- overtravel – 0.063"
- differential travel max – 0.025"
- - Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.01
