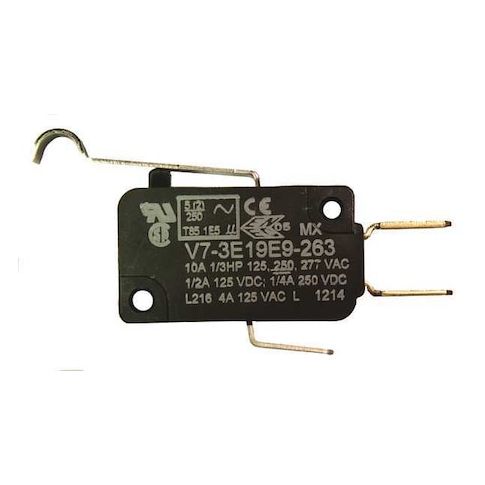

Miniature Snap Action Switch - SPDT, Lever Roller, 10A, Quick Connect MPN:V7-3E19E9-263
The Honeywell MICRO SWITCH V7 Miniature Snap Action Switch is a versatile and compact solution for on/off limit and presence/absence sensing tasks. Its lever actuator with simulated roller provides a smooth and reliable operation, while its SPDT contact configuration supports both AC and DC operations. This switch is ideal for use in applications such as industrial automation, medical devices, and consumer electronics, where space and reliability are crucial. With its compact design and quick connect terminals, it offers ease of installation and maintenance, making it a valuable addition to any system where precise control is required.
Top product features:
- Contact Ratings: 10A @ 125–250VAC, 0.5A @ 125VDC, 0.25A @ 250VDC
- Lever actuator with a simulated roller provides versatility for various on/off limit and presence/absence sensing tasks
- SPDT (Single Pole Double Throw) contact configuration supports both AC and DC operations
Top product applications:
- Limit and presence/absence sensing in industrial automation
- On/off control in medical equipment
- Safety interlock in machinery
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with a compact thermoplastic housing. This switch features a lever actuator with a simulated roller, providing versatility for various on/off limit and presence/absence sensing tasks. The unit offers SPDT (Single Pole Double Throw) contact configuration and supports both AC and DC operations.
Key Features:
- - Contact Ratings: 10A @ 125–250VAC
- 0.5A @ 125VDC
- 0.25A @ 250VDC
- - Actuator Style: Lever with simulated roller, length of 0.97"
- - Body Dimensions: Width 1.14", Height 0.63", Depth 0.4"
- - Mounting Hole Distance: Center-to-center spacing of 0.87"
- hole diameter of 1/8"
- - Electrical Connection: Quick connect terminals (spade tab, 0.250" wide x 0.032" thick)
- - Operating Force: Maximum of 1.1 ozf (33 gf)
- - Differential Travel: Maximum of 0.03"
- - Overtravel: Up to 0.075"
- Pre-travel maximum of approximately 0.106"
- - Housing Material: PCT polyester thermoplastic
- - Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.10
- Package Height: 0.50
- Package Weight: 0.05
