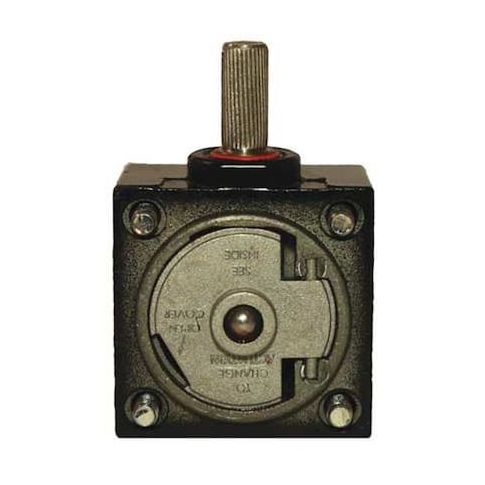

Limit Switch Rotary Head - Side-Mount, HDLS/LSR Series, Low Torque MPN:LSZ1R
The Honeywell Limit Switch Replacement Rotary Head for LSR Series is a versatile and reliable solution for applications requiring precise directional movement. Designed for use with HDLS and LSR series switches, this side-mounted rotary lever actuator is compatible with a range of Honeywell model numbers. With its low torque head and ability to support both clockwise and counterclockwise movement, this product is ideal for use in various industries, including manufacturing, automation, and process control. Its durability and resistance to extreme temperatures make it a valuable addition to any system.
Top product features:
- Actuator Style: Side-mounted rotary lever
- Directional Movement: Capable of clockwise (CW) and counterclockwise (CCW) directional movement within specified parameters
- Operating Torque: Rated at 1.7 in-lb
Top product applications:
- Industrial Automation
- Factory Automation
- Machine Design
The Honeywell Limit Switch Replacement Rotary Head for LSR Series is a limit switch head designed for use with HDLS and LSR series switches. This side-mounted rotary lever actuator is compatible with Honeywell model numbers including: 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A. It features a low torque head and supports both clockwise (CW) and counterclockwise (CCW) directional movement within specified parameters.
Key Features:
- - Actuator Style: Side-mounted rotary lever
- - Compatible Models: Compatible with Honeywell HDLS and LSR series switches
- applicable to model numbers including: 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A
- - Directional Movement: Capable of clockwise (CW) and counterclockwise (CCW) directional movement within specified parameters
- - Operating Torque: Rated at 1.7 in-lb
- - Travel Specifications: Differential travel of up to 7 degrees
- overtravel minimum of 60 degrees
- pretravel maximum of 15 degrees
- - NEMA Enclosure Ratings: Rated for use in environments requiring NEMA types 1, 3, 4/4X/6/6P enclosure classifications
- - Operating Temperature Range: From 30°F to 250°F
- - Voltage Rating: Up to 600V AC / 250V DC
- - Standards Compliance: RoHS
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 1.90
- Package Height: 4.00
- Package Weight: 0.55
