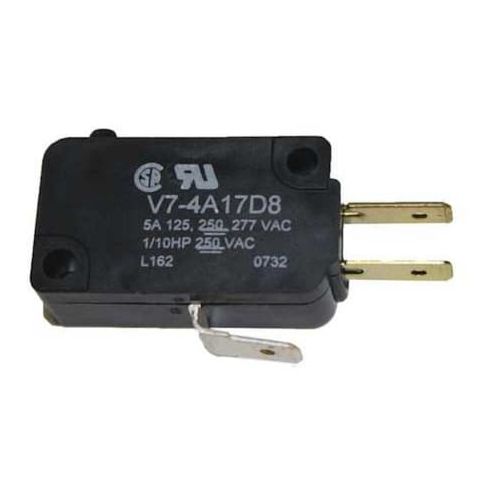

Snap Action Switch - V7 Series, SPDT, Pin Plunger, 5A, Miniature MPN:V7-4A17D8
The Honeywell MICRO SWITCH V7 Miniature Snap Action Switch is a compact and reliable solution for various control or sensing applications. Its pin plunger actuator and thermoplastic polyester housing make it ideal for use in small spaces. This SPDT switch supports both normally open and normally closed contacts, allowing for flexible configuration options. With a high AC contact rating of 5A at 125V, 250V, or 277V, and a maximum operating force of 25g, this switch is suitable for applications requiring precise control, such as industrial automation, medical equipment, and consumer electronics. Its compact size and durable design make it a reliable choice for a wide range of industries.
Top product features:
- Supports both normally open and normally closed contacts
- Rated for up to 1/10 HP at 250 V
- Has a maximum operating force of 25 g (0.9 ozf)
Top product applications:
- Control or sensing applications requiring compact dimensions
- Automotive applications where a small footprint is necessary
- Industrial control panels where space is limited
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch features a pin plunger actuator and is constructed with a thermoplastic polyester housing. This SPDT switch supports specified contact configurations, supporting both normally open and normally closed contacts, and can be used in various control or sensing applications requiring compact dimensions.
Key features:
- - AC Contact Rating: 5 A at 125 V, 250 V, or 277 V
- rated for up to 1/10 HP at 250 V
- - Actuator Style: Pin plunger
- - Contact Form: SPDT (Single Pole Double Throw), 1NO/1NC
- - Body Dimensions: Width 1.14 in, Height 0.63 in, Depth 0.4 in
- - Housing Material: PCT Polyester Thermoplastic
- - Electrical Connection: Quick connect terminals (3/16 in)
- - Operating Force: Maximum of 25 g (0.9 ozf)
- - Travel Specifications: Pretravel of 0.047 in
- overtravel of 0.05 in
- differential travel between 0.002–0.01 in
- - Mounting Hole Distance: Centers at 0.87 in
- mounting hole diameter of 1/8 in
- - Operating Temperature Range: -40°F to +185°F standard (options available up to +347°F)
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.90
- Package Width: 0.60
- Package Height: 0.20
- Package Weight: 0.01
