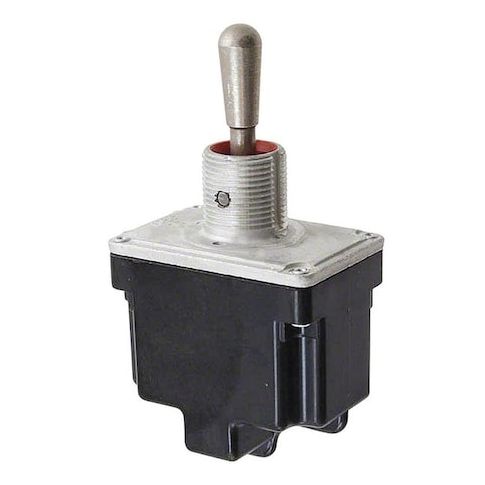

Toggle Switch - DPST, 15A/125V AC, Metal Lever, IP67/IP68 Rated MPN:2NT1-2
The Honeywell NT Series Toggle Switch is a reliable and durable solution for various applications, including industrial, commercial, and residential settings. This DPST switch offers a maintained ON/OFF operation with a standard metal lever actuator, providing a secure and long-lasting connection. Its IP67/IP68 rating ensures resistance to dust, water, and vibration, making it suitable for use in harsh environments. The switch is also designed for high-temperature applications, with an operating range of -85°F to +160°F. Its compact size and screw terminals with four connections make it ideal for panel mounting, ideal for use in control panels, machinery, and equipment.
Top product features:
- Double Pole, Single Throw (DPST) maintained ON/OFF switch operation
- Standard metal lever actuator with a silver finish
- Resistance to shock and environmental ingress, meeting listed IP/NEMA ratings for dust and water ingress protection
Top product applications:
- Automotive applications such as lighting and accessory control systems
- Industrial control systems requiring a high level of environmental resistance
- Marine and outdoor equipment control systems where water and dust ingress protection is essential
The Honeywell NT Series Toggle Switch is a DPST (Double Pole, Single Throw) maintained ON/OFF switch rated for operation within the specified environmental and electrical parameters. It features a standard metal lever actuator with a silver finish and includes a bushing, case, cover, and toggle lever. The step base design supports mounting through panels exposed to vibration, dust, water spray, and temperature extremes. This switch offers non-illuminated operation and is constructed with materials that meet listed IP/NEMA ratings for resistance to shock and environmental ingress.
Key features:
- - Contact Ratings: 15A @ 125V AC/250V AC
- 20A @ 28V DC
- - Horsepower Rating: 1 hp @ 250V AC
- 1/2 hp @ 125V AC
- - Actuator: Standard metal lever
- length of 0.67 in
- silver finish
- - Mounting Hole Diameter: 0.47 in (stem diameter)
- overall dimensions—height: 2.49 in, width: 0.89 in, depth: 1.13 in
- - IP/NEMA Ratings: IP67/IP68
- NEMA types 3, 3R, 4, and 13
- - Operating Temperature Range: -85°F to +160°F (-40°C to +71°C)
- - Terminal Type: Screw terminals with four connections (DPST)
- - Resistance Properties: Rated per IP67/IP68 and NEMA types for dust ingress protection
- tested to relevant standards for vibration and mechanical impact
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.10
