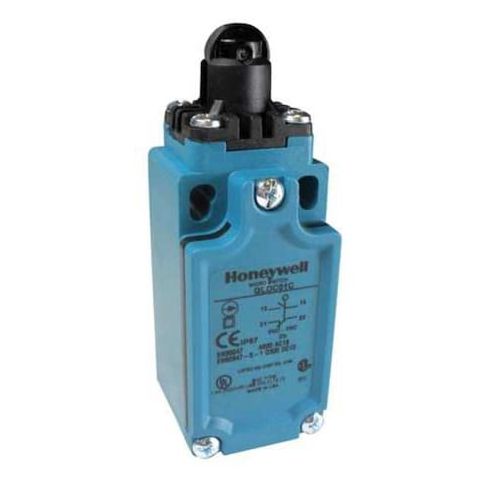

Limit Switch - SPDT, Roller Plunger, Zinc Die Cast, IP67, 10A/300V MPN:GLCA01C
The Honeywell MICRO SWITCH GLS series miniature limit switch is a compact and reliable solution for a variety of applications, including industrial automation, robotics, and process control. Its compact zinc die-cast housing and SPDT configuration make it ideal for installation in tight spaces. With a maximum operating force/torque of 3.6 in-lb and a temperature range of -40°F to +185°F, this limit switch can withstand harsh environments. Its IP67 ingress protection rating ensures reliable operation in wet or dusty conditions, making it suitable for use in food processing, pharmaceutical, and other industries where hygiene is critical.
Top product features:
- Compact zinc die-cast housing allows for installation in environments with limited available space.
- The device features both normally closed and normally open contacts in an SPDT configuration.
- The plunger actuator with steel roller supports linear movement and surface mounting.
Top product applications:
- Machine Tool Automation
- Automotive Assembly Line
- Robotics and Automation
Honeywell's MICRO SWITCH GLS series miniature limit switch features a compact zinc die-cast housing and is suitable for installation in environments with limited available space. This general purpose limit switch includes both normally closed (NC) and normally open (NO) contacts in an SPDT configuration. The device supports linear movement and supports surface mounting using four rectangular-pattern holes.
Key Features:
- - Contact Ratings: 10A at 300V AC
- 10A at 250V DC
- - Actuator Style: Plunger with steel roller, top-mounted
- actuator length 1.89"
- - Body Dimensions: Height 2.17", width 1.2", depth 1.18"
- body material zinc die cast
- - Electrical Connection: Screw terminals
- wiring entry size 1/2" NPT
- - Mounting: Surface mount with four holes (0.21" diameter), spacing 2.36" x 1.18"
- - Travel Parameters: Differential travel 0.04", pretravel 0.12", overtravel 0.59"
- - Operating Force/Torque: Maximum operating force/torque of 3.6 in-lb
- - Environmental Ratings: IP67 ingress protection
- NEMA types 1,12,13,4
- - Temperature Range: -40°F to +185°F
- - Standards Compliance: CCC, IEC947‑5‑1, CE, CSA, EN60947‑5‑1, UL508
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.10
- Package Height: 2.20
- Package Weight: 0.54
