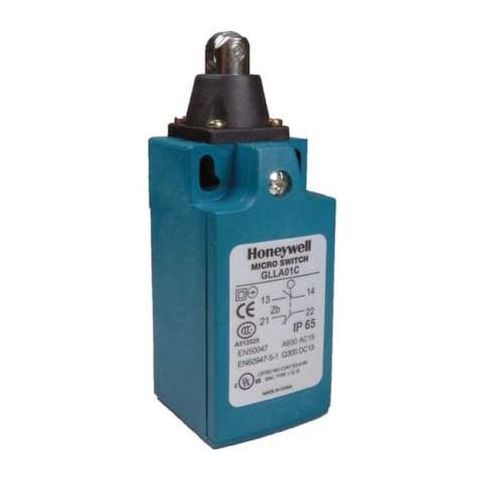

Limit Switch - GLL Series, SPDT, Roller Plunger, 10A, IP65 Rated MPN:GLLA01C
The Honeywell MICRO SWITCH GLL Series limit switch is a compact, general-purpose solution for applications where space is restricted. Its double-insulated plastic housing and roller plunger actuator enable precise control and reliable operation. Suitable for a wide range of applications, including industrial automation, robotics, and HVAC systems, this limit switch offers both normally open and normally closed contacts in a single-pole, double-throw configuration. Its IP65 rating ensures protection against dust and water ingress, making it ideal for harsh environments. With a compact design and high-performance capabilities, this limit switch is a reliable choice for various industrial and commercial applications.
Top product features:
- Compact plastic housing suitable for applications where installation space is restricted.
- Direct opening normally closed circuit contacts per product specifications.
- Normally open (NO) and normally closed (NC) contacts in a single-pole, double-throw (SPDT) configuration.
Top product applications:
- Machine Automation
- Industrial Control Systems
- Factory Automation
Honeywell MICRO SWITCH GLL Series limit switch features a double insulated, compact plastic housing suitable for applications where installation space is restricted. This general purpose limit switch is equipped with a top-mounted plunger actuator with roller and includes direct opening normally closed circuit contacts per product specifications. It offers both normally open (NO) and normally closed (NC) contacts in a single-pole, double-throw (SPDT) configuration.
Key Features:
- - Contact Rating: 10A at 300V AC / 10A at 250V DC
- - Actuator Style: Plunger with roller, top location
- actuator length of 1.89"
- - Body Dimensions: Miniature style
- body width 1.2", height 2.44", depth 1.22"
- - Mounting: Surface mount with two horizontal holes (0.16" diameter), spaced at 0.87" center-to-center
- - Electrical Connection: Screw terminals via threaded entry (12.7mm)
- wiring entry size is 1/2" NPT
- - Travel Parameters: Differential travel of 0.06", pretravel of 0.11", overtravel of 0.118"
- - Operating Force/Torque: Requires up to 2.22 in-lb operating force
- - Temperature Range: Operates from -14°F to +176°F (-10°C to +80°C)
- - Ratings & Standards: IP65 ingress protection
- NEMA rating 1, 12, 13
- certified to CCC, CE, cULus standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.40
- Package Height: 1.40
- Package Weight: 0.13
