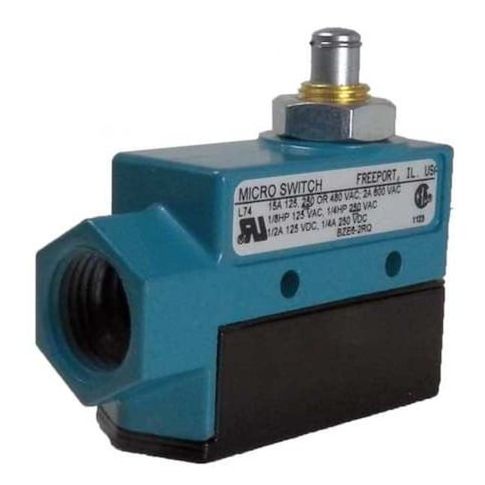

Limit Switch - Compact, Plunger Actuator, SPDT, 15A 600V AC, IP66 MPN:BZE6-2RQ
Free Shipping
In Stock
The Honeywell BZ Series Limit Switch is a compact, plunger-actuated device ideal for a variety of applications, including industrial automation, HVAC, and robotics. Its miniature zinc die-cast body and surface-mount design allow for easy installation in tight spaces. The switch features a durable SPDT contact form with a 15A 600V AC rating, making it suitable for high-voltage applications. With its IP66 enclosure rating and NEMA Type 1 certification, this limit switch provides reliable operation in harsh environments. Its compact size and versatility make it an excellent choice for use in a range of industries and applications.
Top product features:
- Contact Form: 1NC/1NO (SPDT)
- AC Contact Rating: 15A at 600V
- Actuator Style: Plunger, Top Location, Length 0.75 in
Top product applications:
- Automotive Industry
- Machine Tool and Equipment Manufacturing
- Aerospace Industry
Honeywell's BZ Series Limit Switch features a plunger actuator located at the top of a miniature zinc die-cast body. Suitable for a variety of applications as specified by the manufacturer, this limit switch provides surface mounting capability with two horizontal mounting holes and screw terminal electrical connections per product specifications. The compact design allows installation in areas with limited space.
Key Features:
- - Contact Form: 1NC/1NO (SPDT)
- - AC Contact Rating: 15A at 600V
- - DC Contact Rating: 2A at 250V
- - Actuator Style: Plunger, Top Location, Length 0.75 in
- - Body Dimensions: Height 1.75 in, Width 3.04 in, Depth 1 in
- - Mounting Style: Surface
- Two mounting holes (0.22 in diameter), spaced horizontally at 1.00 in center-to-center distance
- - Electrical Connection: Screw terminals
- Wiring entry is 1/2 in NPT
- - Operating Force Range: Minimum 9 ozf to Maximum 13 ozf
- - Travel Parameters: Differential travel of 0.002 in, pretravel of up to 0.02 in, overtravel of up to 0.22 in
- - Temperature Range: -25°F to +160°F
- - Ratings and Standards: IP66 enclosure rating
- NEMA Type 1
- CSA and UL listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.40
- Package Height: 3.90
- Package Weight: 0.65
