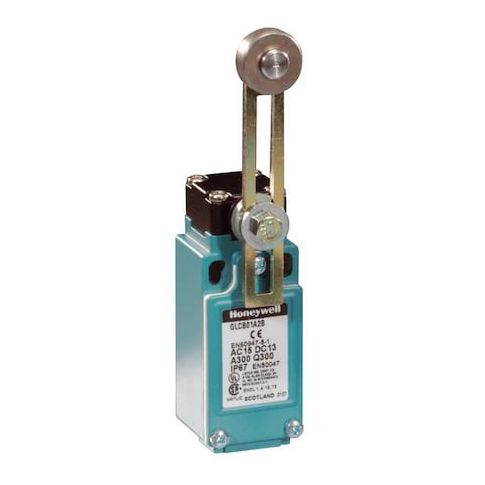

Limit Switch - GLC Series, Rotary Roller Lever, SPDT, Die-Cast Zinc, IP67 MPN:GLCA01A2B

Honeywell's MICRO SWITCH GLC/GLS miniature limit switch features a compact, die-cast zinc housing with a side rotary roller lever actuator. Suitable for a variety of applications within the specified ratings and standards, this limit switch features SPDT (1NC/1NO) contacts and is rated to meet IP67 and NEMA 1, 4, 12, or 13 enclosure specifications. The device supports surface mounting via four rectangular-pattern holes and provides screw terminal electrical connections.

Key Features:

• - Contact Rating: 10A at 300V AC / 10A at 250V DC
• - Actuator Style: Side-mounted rotary roller lever
• adjustable configuration
• - Body Dimensions: Height – 2.17 in
• Width – 1.2 in
• Depth – 1.18 in
• - Roller Material & Size: Steel
• diameter – 0.75 in
• width – 0.25 in
• - Travel Specifications: Pretravel – 26°
• Overtravel – 49°
• Differential travel –11.5°
• - Operating Force/Torque: Maximum operating torque of 1.1 in-lb
• - Electrical Connection: Screw terminals with threaded entry (1/2" NPT)
• - Temperature Range: -40°F to +185°F (-40°C to +85°C)
• - Approvals & Standards: CCC, IEC947‑5‑1, CE, CSA, EN60947‑5‑1, UL508
