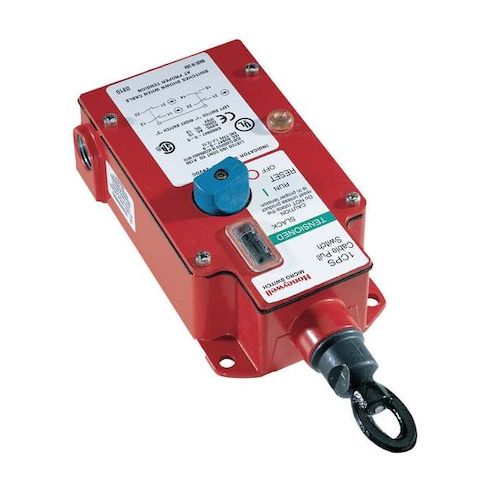

Cable-Pull Safety Switch - 1CPS Series, 250 ft Span, NEMA 4/IP67 Enclosure MPN:1CPSA5
The Honeywell 1CPS Series Cable-Pull Safety Switch is a reliable and durable solution for conveyor line and automated system applications. This single-head, emergency cable pull switch features direct opening contacts and supports a maximum cable span of 250 ft, ensuring safe and efficient operation. With its maintained-action design and manual reset via rotary knob, it provides added security and convenience. Suitable for use in harsh environments, the switch meets NEMA 1, 4, 12, and 13 standards, as well as IP67 rating for ingress protection. Ideal for industries such as manufacturing, logistics, and material handling, this switch helps prevent accidents and downtime.
Top product features:
- Maintained-action switch with direct opening contacts
- Supports a maximum cable span of 250 ft (76 m)
- Features both normally open (NO) and normally closed (NC) gold alloy contacts
Top product applications:
- Conveyor line applications
- Automated system applications
- Emergency shutdown systems
Honeywell's 1CPS Series Cable Pull Safety Switch is a single-head, emergency cable pull switch intended for use as a cable pull switch in conveyor line and automated system applications. This maintained-action switch features direct opening contacts and supports a maximum cable span of 250 ft (76 m). The unit includes both normally open (NO) and normally closed (NC) gold alloy contacts, with manual reset via rotary knob. Its zinc die-cast enclosure meets NEMA 1, 4, 12, and 13 standards as well as IP67 rating for ingress protection.
Key Features:
- - Contact configuration: 1NO/1NC gold alloy direct opening contacts
- - AC contact rating: 0.05 A @ 250 V
- DC contact rating: 2.5 A @ 24 V
- - Maximum cable span: up to 250 ft (76 m)
- - Enclosure material/rating: Die cast zinc
- NEMA ratings: 1, 4, 12, and 13
- IP67
- - Connection/wiring entry: Single end mounting style with left or right cable connection location
- accepts standard CPS accessories
- wiring entry is a threaded 1/2 in. NPT
- - Operating temperature range: -40°F to +176°F (-40°C to +85°C)
- - Mechanical life tested to one million operations under laboratory conditions
