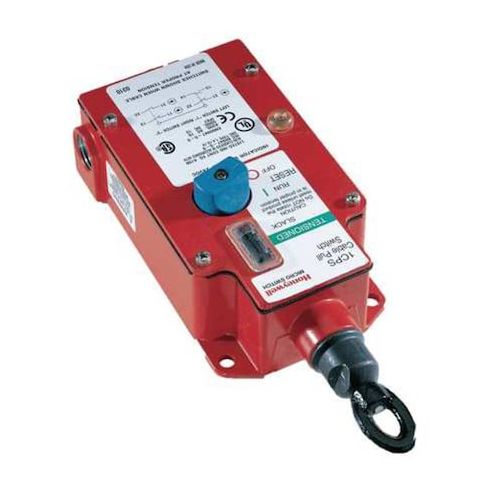

Cable-Pull Safety Switch – 1CPS Series, Emergency Stop, 2NO/2NC, 250 ft Span MPN:1CPSA2A
The Honeywell 1CPS Series Cable Pull Safety Switch is a reliable and versatile emergency stop solution for conveyor line and automated system applications. This single-head switch features 2NO/2NC direct opening contacts, ensuring seamless signaling and monitoring functions. With a maximum cable span of 250 ft, it's ideal for applications with extensive cable runs. The integrated LED light provides visual status indication, while the manual rotary knob reset ensures easy operation. Suitable for use in harsh environments, this switch offers mechanical life tested to one million operations, making it a durable and long-lasting solution for critical safety applications.
Top product features:
- Contact Configuration: 2NO/2NC direct opening silver alloy contacts
- Electrical Ratings: 10A @ 600V AC, 2.5A @ 24V DC, minimum current of 50mA
- Maximum Cable Span: Up to 250 ft (76 m)
Top product applications:
- Conveyor line applications
- Automated system applications
- Machine safety systems
Honeywell's 1CPS Series Cable Pull Safety Switch is a single-head, emergency cable pull switch intended for use as a stop signal in conveyor line or automated system applications. The internal mechanism latches when the actuating cable is either pulled or slackened, and a rotary knob reset returns the switch to operation after actuation. A tension window with a midpoint line aids in proper setup, while direct opening contacts change state upon cable activation. This model features both Normally Open (NO) and Normally Closed (NC) contacts for signaling and monitoring functions.
Key Features:
- - Contact Configuration: 2NO/2NC direct opening silver alloy contacts
- - Electrical Ratings: 10A @ 600V AC
- 2.5A @ 24V DC
- minimum current of 50mA
- - Maximum Cable Span: Up to 250 ft (76 m)
- - Enclosure Material & Rating: Die cast zinc case, red finish
- NEMA Types 1, 4, 12, and 13 (IP67)
- - Indicator: Integrated LED light for status indication at 24V DC
- - Mounting Style: Single end with left or right cable connection location
- - Reset Mechanism: Manual rotary knob reset
- - Operating Temperature Range: -40°F to +176°F (-40°C to +85°C)
- - Mechanical life tested to one million operations under specified conditions
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 8.40
- Package Height: 3.60
- Package Weight: 4.55
