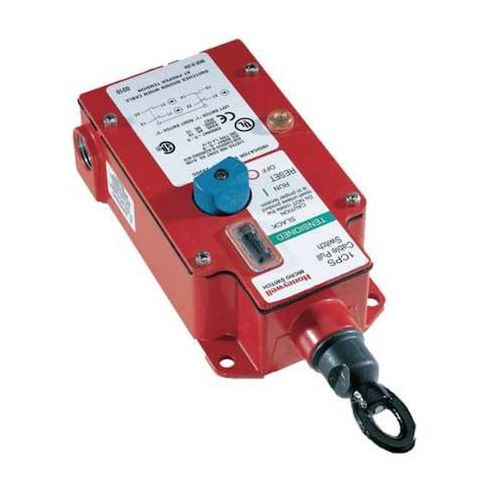

Cable-Pull Safety Switch - 1NO/1NC, 250 ft Span, LED Indicator, CPS Series MPN:1CPSA1B
The Honeywell Cable-Pull Safety Switch is a reliable and efficient solution for signaling applications in various industries. This maintained-action emergency switch is designed for use in cable spans up to 250 ft, providing a secure and consistent signal. The 1NO/1NC configuration and internal mechanism ensure a latched operation, requiring manual reset via a rotary knob after activation. The integrated LED indicator provides visual status feedback, making it ideal for applications in harsh environments, such as manufacturing, oil and gas, and chemical processing. Its durable construction and IP67 rating ensure a long lifespan and reliable performance.
Top product features:
- Contact configuration: 1 Normally Open / 1 Normally Closed (1NO/1NC) for signaling applications
- Integrated LED indicator provides visual status feedback at 120V AC
- Internal mechanism latches when the actuating cable is either pulled or slackened, requiring manual reset via a rotary knob after activation
Top product applications:
- Industrial Automation
- Emergency Stop Systems
- Machine Guarding
Honeywell's Cable Pull Safety Switch, Single Head (1NO/1NC), is a maintained-action emergency cable pull switch compatible with the MICRO SWITCH CPS Series. This unit is intended for signaling applications along cable spans up to 250 ft. The internal mechanism latches when the actuating cable is either pulled or slackened, requiring manual reset via a rotary knob after activation. A 120V AC LED indicator provides visual status feedback.
Key features include:
- - Contact configuration: 1 Normally Open / 1 Normally Closed (1NO/1NC)
- - Maximum cable span: 250 ft
- - Case material: Zinc die cast
- IP67 and NEMA 1, 4, 12, and 13 rated enclosure
- - AC contact rating: Up to 10A @ 600V
- DC contact rating: Up to 2.5A @ 24V
- - Indicator light: Integrated LED for status indication at 120VAC
- - Mounting style: Single end with left or right cable connection location
- - Reset method: Rotary knob
- maintained switch function
- - Operating temperature range: -40°F to +176°F
- - Wiring entry size: 1/2 in NPT
- - Dimensions (L x W x D): 10.62 in x 3.9 in x 2.57 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.20
- Package Width: 8.50
- Package Height: 8.50
- Package Weight: 4.49
