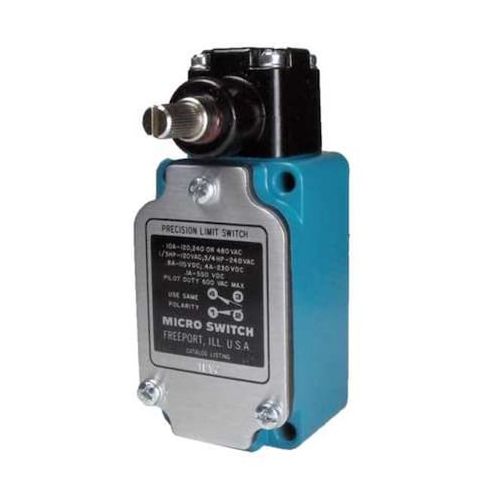

Limit Switch - LS Series, Rotary Head, 10A, Compact Zinc Body, NEMA Rated MPN:1LS2-L

Honeywell’s MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited available space.

Key Features:

• - Contact Rating: 10A at 480V AC
• - Actuator Style: Rotary head, no lever
• side actuator location
• - Body Construction: Die-cast zinc
• miniature style
• body dimensions—height: 2.7 in, width: 1.19 in, depth: 1.13 in
• - Mounting Style: Surface mount with four mounting holes (0.19 in diameter), rectangular pattern
• - Electrical Connection: Screw terminals with threaded entry (1/2 in NPT)
• - Travel Parameters: Pretravel—20°, overtravel—30°, differential travel—12°
• - Operating Force/Torque: Maximum operating force of 4.5 in-lb
• - Temperature Range: -20°F to 160°F (-29°C to 71°C)
• - Rated for use within NEMA types 1, 3, 4, 6, and 13 enclosures
• - Certified to applicable CSA and UL standards
