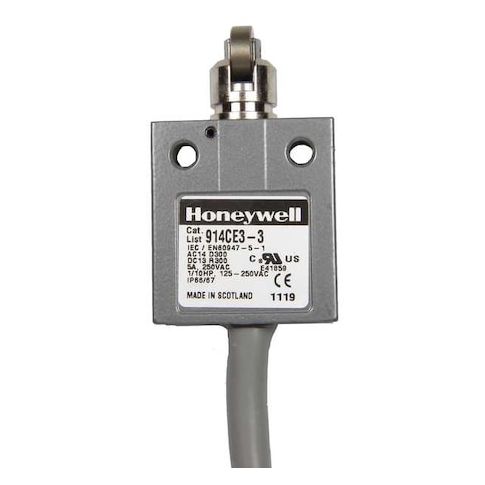

Miniature Limit Switch - 914CE, Cross Roller Plunger, SPDT, IP68 Rated MPN:914CE3-3
The Honeywell 914CE Series Limit Switch is a compact, general-purpose switch ideal for applications in North American markets. Its robust design and durable construction enable it to withstand challenging environmental factors, making it suitable for use in harsh conditions. This limit switch features a cross roller plunger actuator and is rated for up to 5A at 240V AC, making it suitable for a variety of applications, including industrial automation, robotics, and equipment control. Its compact size and versatile design make it an excellent choice for space-constrained environments and applications requiring high reliability and precision.
Top product features:
- Cross roller plunger actuator for precise and reliable operation
- SPDT (1NC/1NO) contact rating for up to 5A at 240V AC
- Epoxy-encapsulated cable connection for protection against harsh environmental factors
Top product applications:
- General-purpose industrial applications
- Automotive applications
- Medical device applications
The Honeywell 914CE Series Limit Switch is a compact, general-purpose switch featuring a cross roller plunger actuator located at the top of its miniature zinc die-cast body. Suitable for applications within North American markets, this limit switch incorporates fluorocarbon diaphragm sealing and an epoxy-encapsulated cable connection with materials and construction rated for exposure to challenging environmental factors. It meets multiple NEMA enclosure ratings (1, 2, 3, 3R, 4, 6, 6P, and 13) as well as IP66/IP67/IP68 ingress protection standards.
Key features:
- - Contact rating: SPDT (1NC/1NO), rated for up to 5A at 240V AC
- - Actuator style: Cross roller plunger
- actuator length of 1.12 in
- - Body dimensions: Height – 1.73 in
- Width – 1.58 in
- Depth – 0.63 in
- - Mounting: Surface mount with two horizontal holes (0.20 in diameter), spaced at 0.98 in center-to-center
- - Electrical connection: Integrated with a three-foot cable
- - Mechanical travel: Pretravel of 0.04 in ±0.02 in
- overtravel minimum of 0.118 in
- differential travel of 0.004 in
- - Operating force/torque: Maximum operating torque of up to 2.65 in-lb
- release force up to .99 lb max
- - Temperature range: Operates from +32°F to +221°F
- - Standards met: CE, CSA, IEC947‑5‑1, EN60947‑5‑1, UL
Additional Information
- Country of Origin: GB
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.50
- Package Height: 1.50
- Package Weight: 0.60
