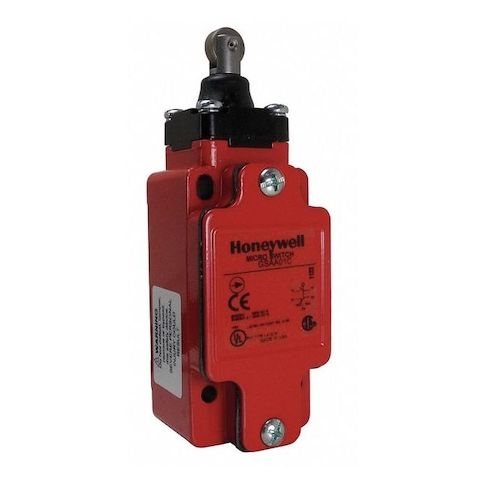

Safety Interlock Switch - GSS Series, Roller Plunger, 2NO/2NC, IP67 Rated MPN:GSAA22C

Honeywell’s GSS Series Safety Interlock Switch is an electromechanical switch manufactured in accordance with EN50041 standards, featuring a red zinc body for clear identification in various applications. This model uses a top roller plunger actuator and includes both NO and NC contacts with slow action circuitry. The switch is equipped with gold-plated contacts, supports both AC and DC ratings, and is rated for a maximum of 15 million mechanical operations under specified conditions.

Key features:

• - Contact configuration: 2NO/2NC, gold-plated
• - Actuator style: Plunger with steel roller (0.49 in diameter x 0.18 in wide), actuator length 1.99 in
• - Body material: Zinc
• overall dimensions: Height 3.23 in, Width/Depth 1.65 in
• - Electrical ratings: AC—10 A
• DC—0.1 to 10 A @ 250 V
• - Conduit size & connection type: 1/2 in NPT conduit
• - Operating force: Max 2.1 in-lb
• movement type: Lateral
• - Travel specifications: Pre-travel—15 mm
• differential travel—9 mm
• positive travel—18.3 mm
• - Temperature range: -13°F to +185°F
• - NEMA enclosure rating: Types 1, 4, 12, and 13
• IP67 rated
• - Standards met: CE, CSA, SIL3, UL Listed
• - Additional features include non plug-in design with fixed head/cover secured by TORX® socket screws (driver supplied), tested for vibration resistance up to 10G as per IEC standard
