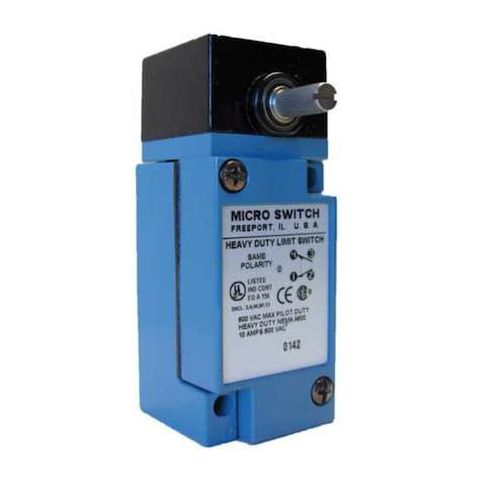

Limit Switch - Heavy Duty, Rotary, SPDT, Zinc Die Cast, 10A/600VAC, IP67 MPN:LSP1A
The Honeywell Heavy Duty Limit Switch is a rugged and reliable solution for demanding applications. Designed for use in harsh environments, this rotary switch features a zinc die cast construction and IP67 rating for corrosion resistance and protection against dust and water. With a 10A/600VAC rating and SPDT contact form, it supports both AC and DC power sources. Ideal for use in manufacturing, industrial, and commercial settings, this switch offers a long lifespan and easy installation via screw terminals. Its compact design and versatile mounting options make it suitable for a wide range of applications, including conveyor systems and machinery control.
Top product features:
- Rotary head actuator style without lever
- Supports both AC (10A at 600V) and DC (10A at 250V) ratings
- Zinc die cast construction is rated for corrosion resistance
Top product applications:
- Machine Automation
- Industrial Control Systems
- Robotics and Automation
The Honeywell Heavy Duty Limit Switch is a rotary, momentary-action switch from the LSP Series, designed with a side actuator location and no lever. It features a zinc die cast miniature body style with plug-in configuration and surface mounting capability. The unit offers 1NC/1NO (SPDT) contact form, supporting both AC (10A at 600V) and DC (10A at 250V) ratings. Its rugged housing provides resistance to corrosion and is rated for use in demanding conditions.
Key features include:
- - Rotary head actuator style without lever
- side-mounted
- - Contact rating: 10A at 600VAC / 10A at 250VDC
- - Contact form: Single-pole double-throw (1NC/1NO)
- - Body dimensions: Height 2.95 in, Width 1.62 in, Depth 1.75 in
- overall height of assembly is 4.20 in
- - Zinc die cast construction is rated for corrosion resistance per manufacturer specifications
- - Surface mount design with two diagonal mounting holes (0.2 in diameter), spaced at 2.34 x 1.16 inches center-to-center
- - Movement supports clockwise/counterclockwise operation
- differential travel of 3°, pretravel of 9°, overtravel of minimum 66°
- - Operating force up to 4 in-lb
- operating temperature range from 10°F to 250°F
- - Electrical connection via screw terminals
- wiring entry size is ^1⁄2"-14 NPT
- - Rated IP65/IP66/IP67 and NEMA types: 1, 3, 4, 4X, 6, 6P, 12, 13
- - Certified to CCC, CE, CSA & UL standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.30
- Package Height: 6.00
- Package Weight: 1.60
