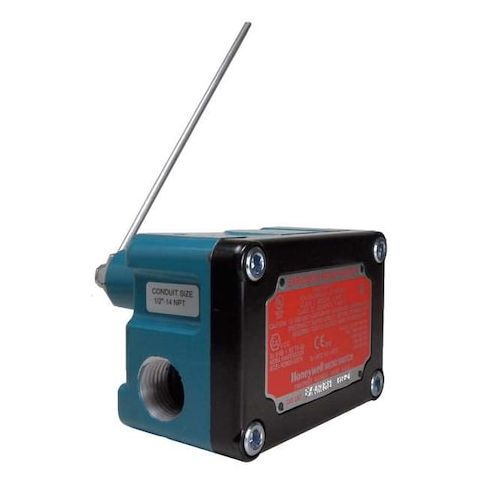

Explosion Proof Limit Switch - Rotary Adjustable Rod, SPDT, Aluminum, ATEX/UL MPN:EX-AR1613

The Honeywell Explosion Proof Limit Switch is a rotary, adjustable rod actuator rated for use in hazardous locations per listed certifications and standards. Featuring a miniature aluminum body and top-mounted actuator, this limit switch offers a contact form of 1NC/1NO (SPDT) and supports both AC and DC voltage ratings. The EX Series switch cavity is constructed with a cavity designed according to applicable safety standards regarding gas expansion, with ample wiring space for installation flexibility.

Key features:

• - Actuator: Rotary lever arm with adjustable rod, 5.3" length, top location
• - Contact Ratings: 15A at 600V AC
• 0.25A at 250V DC
• - Contact Form: Single pole double throw (1NC/1NO)
• - Body Dimensions: Depth 2.02", Height 2.56", Width 2.78"
• - Material: Aluminum body and arm
• - Mounting: Surface mount with two horizontal holes (10-32 thread), spacing of 2.06"
• - Electrical Connection: Screw terminals
• wiring entry via 1/2"-14 NPT
• - Movement & Travel: Clockwise operation
• pretravel of 18°, overtravel up to 90°
• - Operating Temperature Range: -40°F to +160°F
• - Certifications & Standards: ATEX, IEC Ex, CSA, UL
• suitable for Class I Divisions 1 & 2 Groups B,C,D and Class II Divisions E,F,G
