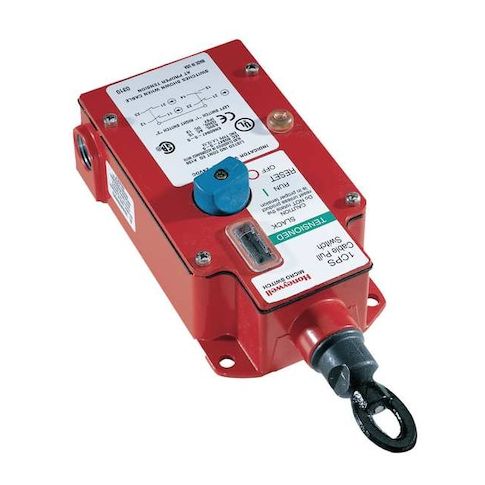

Cable-Pull Safety Switch, 1NO/1NC, Single End, 250 ft Span, IP67, 1/2NPT MPN:1CPSA1
Honeywell's Cable-Pull Safety Switch is a reliable and maintained-action emergency cable pull switch designed for use in conveyor line or automated system applications. This single-ended switch features a 1NO/1NC configuration, supporting cable spans up to 250 ft, and is compatible with both AC and DC applications. The switch is easy to reset via a rotary knob and meets NEMA enclosure standards, ensuring a secure and reliable operation. Suitable for use in harsh environments, this switch is ideal for applications requiring a stop signal input device, such as in manufacturing, material handling, and automated systems.
Top product features:
- Maintained-action emergency cable pull switch with internal mechanism latching when actuating cable is pulled or slackened
- Contact configuration of 1 Normally Open / 1 Normally Closed (1NO/1NC) for versatile application compatibility
- Reset method via rotary knob for easy and intuitive operation
Top product applications:
- Conveyor line applications
- Automated system applications
- Machine safety shutdown systems
Honeywell's Cable Pull Safety Switch, Single Head 1NO/1NC 1/2NPT (Series 1CPS), is a maintained-action emergency cable pull switch intended for use as a stop signal input device in conveyor line or automated system applications. The internal mechanism latches when the actuating cable is either pulled or slackened, and the contacts remain open until reset by properly tensioning the cable and rotating the reset knob. This model supports single-ended mounting with left or right cable connection locations and is compatible with cable spans up to 250 ft.
Key features:
- - Contact configuration: 1 Normally Open / 1 Normally Closed (1NO/1NC)
- - AC contact rating: 10 A @ 600 V
- DC contact rating: 2.5 A @ 24 V
- - Case material: Zinc die cast
- contact material: Silver alloy
- - Mounting style: Single end
- wiring entry: 1/2 in NPT
- - Operating force required: 3 to 5 lb
- pull force limit: up to 40 lb
- - Reset method via rotary knob
- - Rated IP67 ingress protection
- meets NEMA enclosure standards Types 1,12,13,4
- - Operating temperature range from -40°F to +176°F
- - Dimensions (L x W x D): 10.62 in x 3.9 in x 2.57 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.30
- Package Width: 8.50
- Package Height: 3.50
- Package Weight: 4.50
