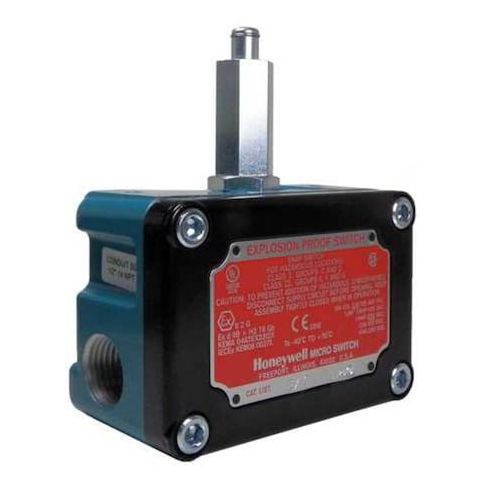

Explosion Proof Limit Switch - SPDT, Plunger, Aluminum, Hazardous Rated MPN:EX-Q
Explosion Proof Limit Switch - SPDT, Plunger, Aluminum, Hazardous Rated
The Honeywell Explosion Proof Limit Switch is a miniature, plunger-style device rated for operation in environments meeting the specified hazardous location ratings and certifications. Part of the MICRO SWITCH EX Series, it features a compact aluminum housing designed to meet applicable safety standards for hazardous locations. The switch provides single-pole double-throw (SPDT) contacts with 1 normally closed and 1 normally open configuration
- rated for use within the specified AC and DC voltage ranges. It is equipped with screw terminals for electrical connection and mounts via two horizontal holes.
Key features:
- - Contact Rating: 15A at 480V AC
- 0.25A at 250V DC
- - Actuator: Plunger style, top location, actuator length of 1.86"
- - Body Dimensions: Height 2.56", Width 2.78", Depth 2.02"
- miniature aluminum body
- - Mounting: Surface mount with (2) 10-32 threaded holes spaced at 2.06" center-to-center
- - Movement/Travel: Linear movement
- differential travel of 0.004", pretravel of 0.08", overtravel of 0.19"
- - Operating Force: Requires a force of 3 lb to actuate
- - Temperature Range: Operates from -40°F to +160°F
- - Hazardous Location Ratings & Certifications: ATEX, IEC Ex, CSA, UL
- suitable for Class I Divisions 1 & 2 Groups B,C,D and Class II Divisions E,F,G
- - Wiring Entry: Accepts conduit via a single threaded entry (1/2"-14 NPT)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 3.10
- Package Height: 3.90
- Package Weight: 1.45
Product info last updated on April 11, 2026 9:38am UTC
Category: Industrial Electrical Controls and Automation
