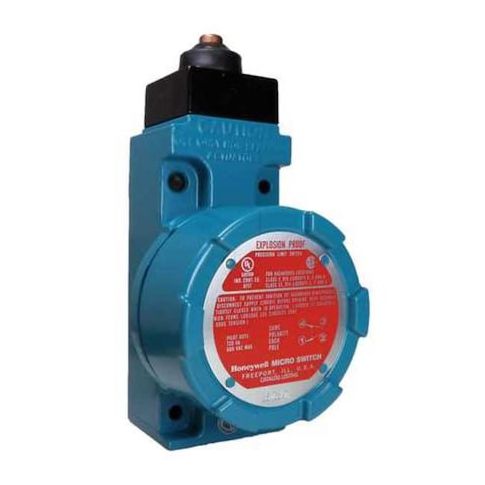

Limit Switch - LSX Series, Hazardous Location, Plunger Actuator, SPDT MPN:LSXC3K
The Honeywell LSX Series Hazardous Location Limit Switch is designed for use in environments that meet specific hazardous location classifications, providing a safe and reliable solution for industrial applications. This plunger-style limit switch features SPDT contacts, supporting both AC and DC ratings, and is constructed with an aluminum housing and integrated flame path features for added protection. Suitable for use in Class I Div 1 and Class II Div 1 locations, it's ideal for applications in the oil and gas, chemical, and pharmaceutical industries, where safety and reliability are paramount. It's also easy to mount and connect.
Top product features:
- The Honeywell LSX Series Hazardous Location Limit Switch provides SPDT (1NC/1NO) contacts supporting both AC and DC ratings.
- The unit has a plunger-style limit switch with a top-mounted actuator and an actuator length of 2.31 in.
- The switch is constructed with an aluminum housing and integrated flame path features per product specifications.
Top product applications:
- Oil and Gas Industry: The Honeywell LSX Series Hazardous Location Limit Switch is suitable for use in oil and gas applications where it can be exposed to hazardous environments, such as refineries, pipelines, and drilling sites.
- Power Generation and Distribution: The switch's ability to operate in harsh environments and its certifications for Class I Div 1 and Class II Div 1 make it an ideal choice for use in power generation and distribution systems, including electrical substations and power plants.
- Chemical Processing and Manufacturing: The LSX Series Limit Switch can be used in chemical processing and manufacturing facilities where hazardous locations are present, such as in areas with flammable or explosive atmospheres.
The Honeywell LSX Series Hazardous Location Limit Switch is rated for operation in environments meeting the specified hazardous location classifications, constructed with an aluminum housing and integrated flame path features per product specifications. This plunger-style limit switch has a top-mounted actuator and provides SPDT (1NC/1NO) contacts, supporting both AC and DC ratings. The unit is surface mountable and incorporates screw terminal connections.
Key features:
- - Contact Rating: 10A at 600V AC
- 10A at 250V DC
- - Actuator Style: Plunger, top location
- actuator length of 2.31 in
- - Body Dimensions: Height 4.75 in, Width 2.0 in, Depth 2.44 in
- standard body style
- - Housing Material: Aluminum construction with zinc die cast housing
- - Certifications/Listings: Class I Div 1 (Groups B,C,D), Class II Div 1 (Groups E,F,G)
- CSA and UL listed
- - NEMA Enclosure Ratings: Types 1, 3, 4, 6,7,and13
- - Electrical Connection: Screw terminals
- wiring entry via 1/2"-14 NPT conduit
- - Operating Temperature Range: -12°C to +121°C (10°F to +250°F)
- - Travel Parameters: Maximum pretravel of 0.07 in
- minimum overtravel of 0.19 in
- maximum differential travel of 0.015 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.30
- Package Height: 7.10
- Package Weight: 1.75
