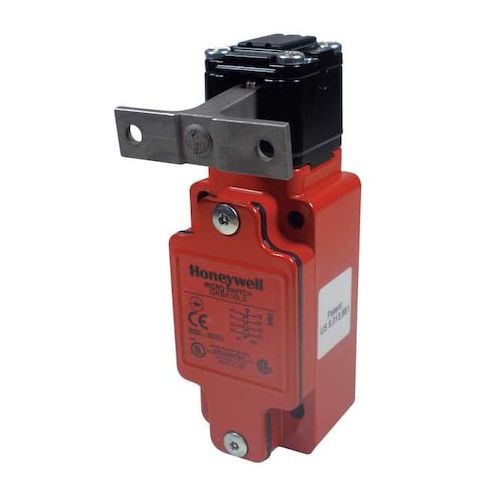

Safety Interlock Switch - GK Series, 2NO/2NC, Zinc Die-Cast, IP67 Rated MPN:GKBA14L7
Protect people and equipment with the Honeywell GK Series Safety Interlock Switch. This key-operated device enables position detection of gates, guards, or doors, ensuring safe operation in various applications. With its dual-entry positions and zinc die-cast housing, it's ideal for industrial, commercial, and residential settings. The switch features 2NO/2NC contacts, a slow-action circuitry, and a mechanical life tested to 15 million operations. Rated IP67, it withstands harsh environments and meets CE, CSA, and UL Listed standards. Perfect for use in manufacturing, construction, and material handling, this interlock switch provides peace of mind and ensures a safe working environment.
Top product features:
- 2NO/2NC contact form
- Slow action circuitry
- Zinc die-cast housing with IP67 rating
Top product applications:
- Position detection of gates
- Industrial machinery safety
- Machine guarding and protection
MICRO SWITCH GK Series Safety Interlock Switches from Honeywell are key-operated devices intended for use in applications requiring position detection of gates, guards, or doors. The switch uses a removable key attached to the moving part of a barrier
- when inserted, it enables circuit continuity when key is inserted. Removing the key opens contacts and disconnects specified circuits when key is removed. This model features dual-entry positions for flexible mounting options and is constructed with a zinc die-cast housing as specified.
Key Features:
- - Contact Form: 2NO/2NC (two normally open, two normally closed)
- - AC Contact Rating: 10 A
- - DC Contact Rating: 0.001 to 10 A @ 250 V
- - Actuating Key Type: 90 Degrees (no actuating key included)
- - Actuator Length: 1.96 in
- Actuator Material: Stainless Steel
- - Body Material & Head Material: Zinc/Zinc Die-Cast
- - Circuitry Action: Slow Action
- - Conduit Size & Connection Type: 1/2 in NPT conduit
- Electrical Connection: 10 Pin
- - Extraction Force: 6 lb
- Operating Force: 8 lb
- - Mechanical life tested to 15 million operations under laboratory conditions
- - Dual Entry Head with front and top opening for key insertion (key hole location)
- - Rated IP67
- NEMA enclosure ratings: Types 1, 4, 12, and 13 per manufacturer specifications
- - Operating Temperature Range: -13°F to +185°F
- - Overall Dimensions (HxWxD): 4.79 x 1.65 x 1.68 in
- - Standards met include CE, CSA, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 2.30
- Package Weight: 1.33
