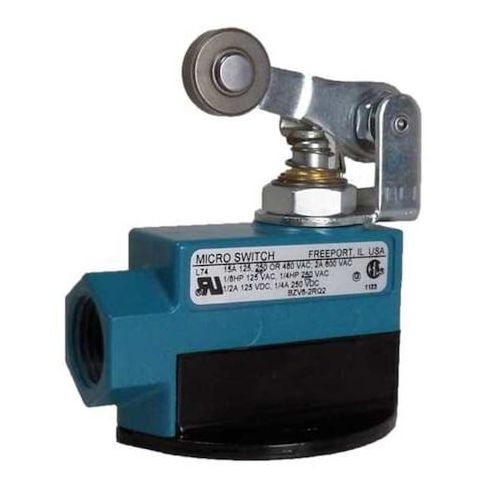

Limit Switch - BZV6, SPDT, Roller Lever, 15A 600V AC, IP66, Zinc Body MPN:BZV6-2RQ2

Honeywell’s BZ Series Limit Switch features a plunger with horizontal roller lever actuator, suitable for a range of applications as specified by the manufacturer. The switch is constructed with a zinc die cast miniature body and steel arm, featuring compact dimensions

Key Features:

• - AC Contact Rating: 15A at 600V
• - DC Contact Rating: 2A at 250V
• - Actuator Style: Plunger, Roller Lever
• Horizontal orientation
• - Actuator Length: 0.91 in
• Roller Diameter: 0.75 in
• Roller Width: 0.25 in
• - Body Dimensions: Height – 1.75 in, Depth – 1 in, Width – 3.04 in
• - Mounting Style: Bottom flange with two mounting holes (0.17 in diameter), spaced horizontally at 1.63 in center-to-center distance
• - Electrical Connection: Screw terminals
• Wiring Entry – 1/2 in NPT
• - Operating Force Range: Minimum –10 ozf, Maximum –18 ozf
• Release Force minimum –6 ozf
• - Travel Parameters: Differential travel –0.01 in, Pretravel –0.19 in, Overtravel –0.22 in
• - Temperature Range: -25°F to +160°F
• - Protection Ratings: IP66 enclosure rating
• NEMA Type 1
• - Standards Certifications: CSA and UL
