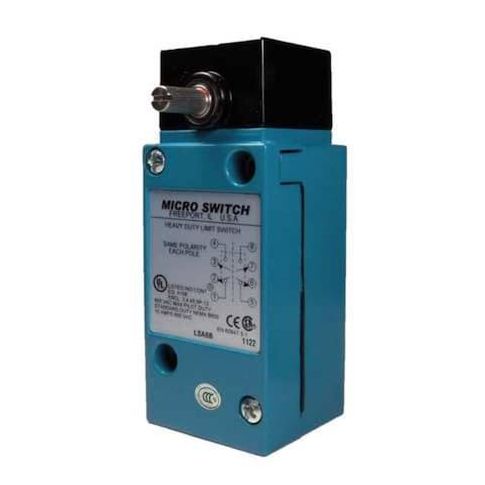

Limit Switch - Heavy Duty, Rotary, DPDT, Zinc Die Cast, IP67/NEMA Rated MPN:LSA7L

The Honeywell Heavy Duty Limit Switch from the LSA Series is a rotary-style, momentary-action switch suitable for surface mounting. It features a zinc die cast body with no lever actuator included and utilizes screw terminals for electrical connection. The unit includes 2 NC and 2 NO contacts (DPDT), rated for operation up to 10A at 600VAC or up to 10A at 250VDC. Its construction is with materials rated as corrosion-resistant, with ingress protection rated at IP65/66/67 and NEMA enclosure types 1, 3, 4, 4X, 6, 6P, 12, and 13.

Key Features:

• - Actuator Style: Rotary head without lever
• side-mounted
• - Contact Configuration: DPDT (2NC/2NO)
• - Electrical Ratings: Up to 10A at 600VAC / up to 10A at 250VDC
• - Body Material: Zinc die cast
• standard style
• - Mounting: Surface mount with two diagonal holes (0.20 in diameter)
• spacing of approximately 60 mm x 30 mm center-to-center
• - Movement & Travel: Operates CW/CCW
• differential travel of seven degrees
• pretravel fifteen degrees
• overtravel sixty degrees
• - Operating Force/Torque: Requires maximum operating force of four in-lb
• - Temperature Range: Operates between ten degrees F and two hundred fifty degrees F
• - Protection Ratings: IP65/IP66/IP67
• NEMA types as listed above
• - Certifications: CCC, CE, CSA, UL
