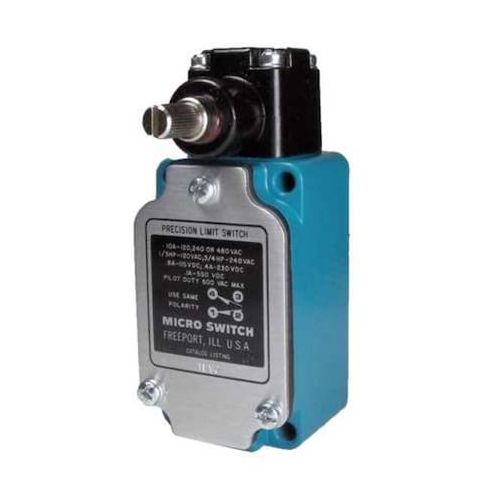

Limit Switch - Rotary Head, SPDT, Zinc Die Cast, 10A 480V, NEMA Rated MPN:1LS23
The Honeywell MICRO SWITCH Compact LS Limit Switch Series is a versatile and reliable solution for a wide range of applications. Suitable for installation in tight spaces, this compact limit switch features a non-plug-in, zinc die-cast miniature body with a rotary head actuator and screw terminal electrical connections. With a 10A 480V AC contact rating and NEMA rating, it's ideal for use in harsh environments. Suitable for applications such as conveyor systems, industrial machinery, and process control, this limit switch offers reliable operation and easy installation. Its compact design and robust construction make it a great choice for industries seeking a compact and reliable solution.
Top product features:
- Rotary head actuator with no lever provides a compact design for installation in limited space environments.
- 1NC/1NO (SPDT) contact configuration allows for versatile switching applications.
- Screw terminal electrical connections enable easy wiring and maintenance.
Top product applications:
- Machine Tool Guarding
- Conveyor Systems
- Pneumatic or Hydraulic Cylinder Positioning
Honeywell’s MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited space, as specified by the product dimensions and ratings. This limit switch intended for applications consistent with its specifications features a non plug-in, zinc die-cast miniature body with a rotary head actuator and no lever. The unit offers 1NC/1NO (SPDT) contact configuration and screw terminal electrical connections.
Key Features:
- - AC Contact Rating: 10A at 480V
- - Actuator Style: Rotary head, no lever
- side location
- - Body Material & Size: Zinc die cast
- body dimensions 2.7 in (H) x 1.57 in (W) x 1.13 in (D)
- - Mounting: Surface mount with four 0.19 in diameter holes on a rectangular pattern
- - Electrical Connection: Screw terminals
- wiring entry via 1/2 in NPT
- - Travel Parameters: Differential travel of 12°, pretravel of 20°, overtravel of 30°
- - Operating Force/Torque: Requires up to 30 in-oz force or maximum torque of 1.7 in-lb
- - Temperature Range: -20°F to +160°F operating temperature
- - Enclosure Ratings: NEMA Types 1, 3, 4, 6, and13
- - Standards Compliance: CSA and UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 2.20
- Package Weight: 1.00
