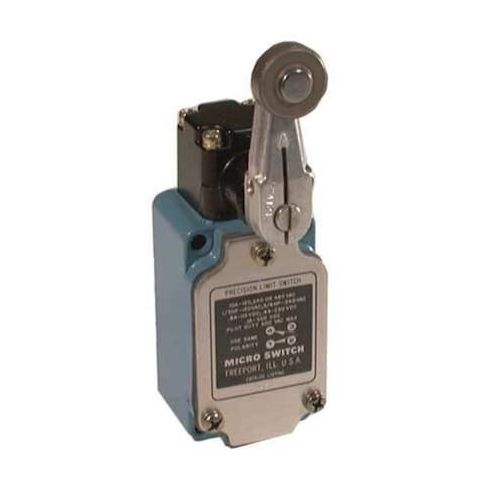

Limit Switch - Compact LS Series, Rotary Roller Lever, SPDT, 10A, Zinc Body MPN:1LS131

Honeywell's MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited space, as specified by product dimensions. This compact limit switch equipped with a rotary roller lever actuator features a non plug-in die-cast zinc body and screw terminal electrical connections. The unit offers SPDT (single-pole double-throw) contact configuration with one normally open (NO) and one normally closed (NC) contact.

Key Features:

• - AC Contact Rating: 10A at 480V
• - Actuator Style: Rotary, Roller Lever
• Actuator Length: 1.5 in
• Arm Material: Steel
• - Actuator Location: Side
• Head Action: Spring Return, Low Force
• - Body Construction/Material: Die Cast Zinc
• Miniature style
• Non Plug-In configuration
• - Electrical Connection: Screw Terminals
• Wiring Entry/Connection Size: 1/2 in NPT Threaded Entry
• - Contact Form: SPDT (1NC/1NO)
• - Mounting Style/Holes: Surface mount with four 0.19 in diameter holes, rectangular pattern (2.31 x 1.19 in spacing)
• - Travel Parameters: Pretravel—5°, Differential Travel—4°, Overtravel—30°
• - Operating Temperature Range: -20°F to 160°F (-29°C to 71°C)
• - NEMA Enclosure Ratings: Types 1, 3, 4, 6, and 13
• - Standards Compliance: CSA and UL
