Miniature Limit Switch - SPDT, Plunger, Boot Seal, 9 ft Cable, Zinc Body MPN:914CE18-9

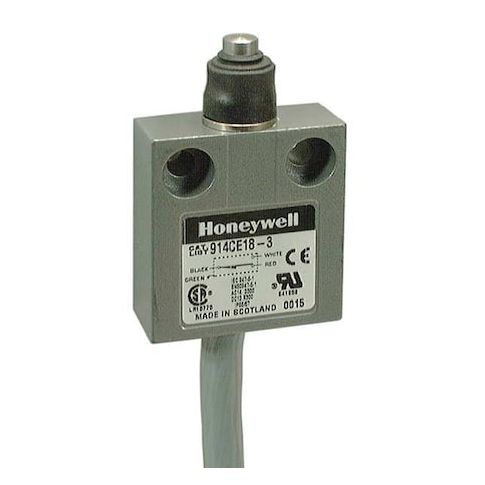

The Honeywell 914CE Series Limit Switch is a compact, enclosed switch intended for general-purpose applications. It features a top-mounted plunger actuator with an actuator includes a boot seal and provides single-pole double-throw (SPDT) contacts with one normally closed and one normally open configuration. The switch body is constructed from zinc die cast material in a miniature style, supporting surface mounting via two horizontal mounting holes. The unit includes a 9 ft cable for electrical connection and is rated to NEMA types 1,13,2,3,3R,4,6,and6P

Key Features:

• - Contact Rating: 5A at 240V AC
• - Actuator Style: Plunger, boot sealed
• actuator length of 0.62 in
• located on top
• - Body Dimensions: Depth 0.63 in, Height 1.73 in, Width 1.58 in
• - Material: Zinc die cast body
• - Mounting: Surface mount with two horizontal holes (0.2 in diameter), spaced at 0.98 in center-to-center
• - Electrical Connection: Integrated 9 ft cable
• - Travel Characteristics: Differential travel of 0.004 in
• pretravel of 0.04 in ±0.02 in
• overtravel minimum of 0.118 in
• - Operating Force: Maximum operating force of 5.06 lb
• release force up to 0.99 lb max
• - Temperature Range: Operates from +35°F to +160°F
• - Ratings & Standards: Rated to NEMA types 1,13,2,3,3R,4,6,and6P
• IP66/IP67/IP68 per manufacturer specifications
