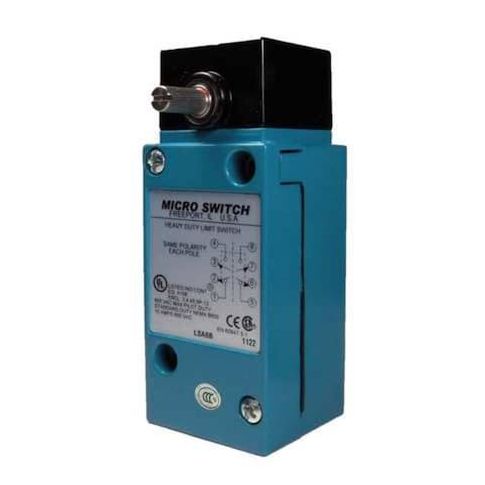

Limit Switch - Heavy Duty, Rotary, DPDT 10A, Surface Mount, LSA Series MPN:LSA6B
The Honeywell Heavy Duty Limit Switch from the LSA Series is a reliable and durable solution for a wide range of applications. Its rotary-style, side-actuated design allows for easy installation and operation, making it ideal for use in industrial settings, such as manufacturing and automation. With a contact rating of 10A at 600V AC or 10A at 250V DC, this switch can handle high electrical demands with ease. Its surface mount design and compact size make it perfect for applications where space is limited, such as in robotics and machine control systems.
Top product features:
- Rotary head actuator style without lever
- Contact rating: 10A at 600V AC / 10A at 250V DC
- Surface mount with two diagonal mounting holes
Top product applications:
- Industrial Automation
- Heavy-duty limit switches like the Honeywell LSA Series are commonly used in industrial automation to control the movement of machinery, such as conveyor belts, pumps, and valves.
- Material Handling Equipment
The Honeywell Heavy Duty Limit Switch from the LSA Series is a rotary-style, side-actuated switch rated for operation within the specified environmental and electrical parameters. It features a zinc die-cast body with plug-in configuration and surface mounting, supporting both clockwise (CW) and counterclockwise (CCW) actuation. The unit offers momentary action with a contact form of 2NC/2NO (DPDT), rated for 10A at 600V AC or 10A at 250V DC. No actuator lever is included.
Key features:
- - Rotary head actuator style without lever
- side actuator location
- - Contact rating: 10A at 600V AC / 10A at 250V DC
- DPDT (2NC/2NO)
- - Surface mount with two diagonal mounting holes (0.20 in diameter, spacing: 2.34 in x 1.16 in)
- - Body dimensions: Height – 4.69 in, Width –1.88 in, Depth –1.79 in
- - Operating temperature range: 10°F to 250°F
- - NEMA enclosure ratings: Types 1,12,13,3,4,4X,6,6P
- housing constructed to meet IP65/66/67 standards as specified
- - Electrical connection via screw terminals
- wiring entry size: 1/2"-14 NPT
- - Mechanical travel specifications include differential travel of7°, pretravel of15°, overtravel of60°
- - Standards met: CCC, CE, CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 3.20
- Package Height: 2.30
- Package Weight: 2.08
