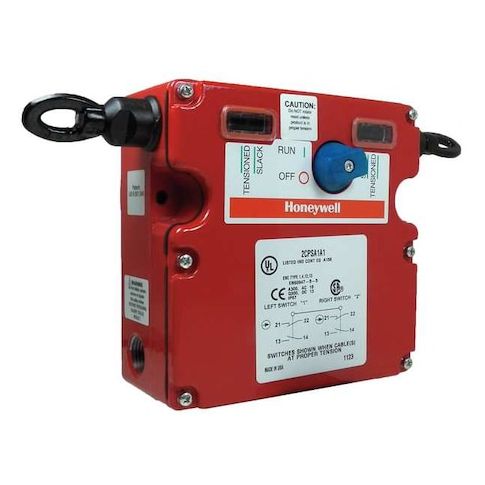

Cable-Pull Safety Switch - 2CPS Series, Dual End, 500 ft Span, IP67 MPN:2CPSA1A1
The Honeywell 2CPS Series Cable Pull Safety Switch is a reliable and versatile solution for conveyor and automated system applications. This double-ended emergency cable pull switch features dual heads for left and right cable connection, supporting maximum cable spans up to 500 ft. With its maintained action and dual cable switching ability, it ensures safe and efficient operation. Suitable for use in harsh environments, the switch is IP67 rated and operates within a wide temperature range of -40°F to +176°F. Ideal for applications in industries such as manufacturing, logistics, and material handling, this switch provides peace of mind and helps prevent accidents.
Top product features:
- Engages upon specified cable conditions (pulling, slackening, or breakage) with manual reset capability via rotary knob after actuation.
- Features dual heads for left and right cable connection, supporting maximum cable spans up to 500 ft.
- Maintains action with dual cable switching ability.
Top product applications:
- Conveyor applications
- Automated system applications
- Emergency shutdown systems
Honeywell's 2CPS Series Cable Pull Safety Switch is a double-ended emergency cable pull switch intended for use as a cable pull switch in conveyor and automated system applications. The internal mechanism incorporates a mechanism that engages upon specified cable conditions (pulling, slackening, or breakage), with manual reset capability via rotary knob after actuation. This model features dual heads for left and right cable connection and supports maximum cable spans up to 500 ft.
Key Features:
- - Contact Form: 2NO/2NC with silver alloy contacts
- - AC Contact Rating: 0.05 A @ 250 V
- DC Contact Rating: 2.5 A @ 24 V
- - Maintained action with dual cable switching ability
- - Case Material: Zinc die cast
- NEMA Enclosure Ratings: 1, 12, 13, and 4
- IP67 rated
- - Operating Temperature Range: -40°F to +176°F
- - Mounting Style: Double end
- Cable Connection Location: Left and Right
- - Reset Mechanism: Rotary knob
- No indicator included
- - Dimensions (L x W x D): 12.75 in x 12.75 in x 3.66 in
- - Wiring Entry Size: 1/2 in NPT
- - Pull Force Requirement: Up to 40 lb
- - Standards Compliance: CE, CSA, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.10
- Package Width: 12.30
- Package Height: 4.60
- Package Weight: 8.20
