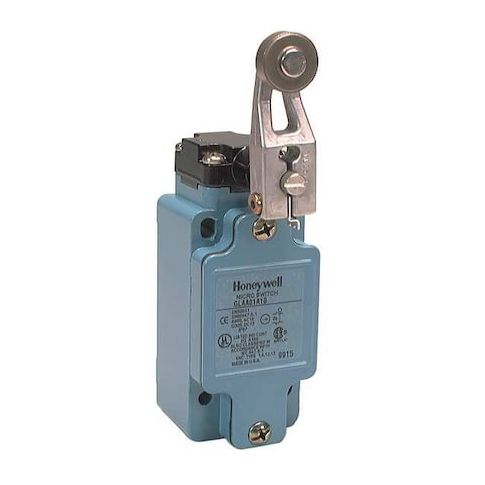

Limit Switch - Rotary Roller Lever, 10A, IP67/NEMA 4, GLA Series MPN:GLAA01A1B
The Honeywell MICRO SWITCH GLA Series Limit Switch is a reliable and versatile solution for a wide range of applications, including industrial automation, machinery, and equipment control. Its rugged design and IP67/NEMA 4 rating ensure it can withstand harsh environments, while its 10A contact rating and 600V AC/250V DC compatibility make it suitable for various electrical systems. With its modular construction and easy-to-use rotary roller lever actuator, this limit switch is perfect for applications requiring precise control and reliability, such as conveyor systems, pumps, and valves. Its compact size and surface mount design make it easy to integrate into existing systems.
Top product features:
- Contact rating: 10A at 600V AC and 10A at 250V DC
- Rotary roller lever actuator with steel arm and 1.5 in length
- Enclosure sealing with IP67 and NEMA types 1,12,13,4 ratings
Top product applications:
- Industrial Automation
- Machine Guarding Systems
- Pneumatic and Hydraulic Systems
Honeywell's MICRO SWITCH GLA Series Limit Switch is a general purpose rotary limit switch manufactured in accordance with EN50041 standards. It features a modular construction with a side-mounted rotary roller lever actuator and a non plug-in, zinc die-cast housing rated for use in environments requiring enclosure sealing, as specified by IP67 and NEMA types 1,12,13,4. The switch offers 1 normally closed (NC) and 1 normally open (NO) contact configuration, supporting both AC and DC ratings.
Key features:
- - Contact rating: 10A at 600V AC
- 10A at 250V DC
- - Actuator style: Rotary roller lever, steel arm
- actuator length: 1.5 in
- roller diameter: 0.75 in
- - Body dimensions: Height – 3.23 in, Width/Depth – 1.65 in
- - Mounting: Surface mount with four holes (0.21 in dia), rectangular pattern (2.36 x 1.18 in)
- - Electrical connection via screw terminals
- wiring entry size: 1/2 in NPT
- - Operating temperature range: -13°F to +185°F
- - Movement capability: Clockwise/counterclockwise rotation
- differential travel of 12°, pretravel of 26°, overtravel of 59°
- - Enclosure ratings: IP67, NEMA types 1,12,13,4
- - Standards met: CCC, IEC947-5-1, CE, CSA, EN60947-5-1, UL508
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.40
- Package Height: 5.90
- Package Weight: 1.15
